REAR COMBINATION LIGHT REMOVAL/INSTALLATION

REAR COMBINATION LIGHT REMOVAL/INSTALLATION

id091800801000

Note
•  Fogging or condensation on the inside of the rear combination lights may occur due to a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the combination lights. However, it has no effect on the light performance because the temperature inside the rear combination lights rises after illuminating a rear turn light or a period of time has elapsed.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)
(2)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
(3)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION [(E)].)
(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(5)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

3.  Partially peel back the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [(E)].)

4.  Remove the trunk side insulator. (See TRUNK SIDE INSULATOR REMOVAL/INSTALLATION.)

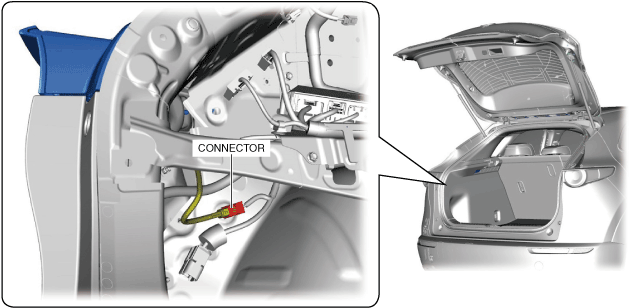

5.  Disconnect the connector.

ac30zw00002302

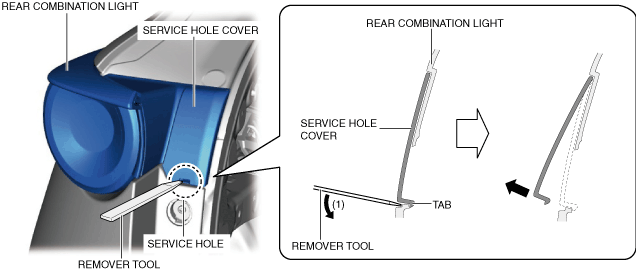

6.  Insert the remover tool into the service hole at the position shown in the figure.

ac30zw00002303

7.  Move the remover tool in the direction of arrow (1) shown in the figure and pull out the service hole cover tab from the rear combination light.

8.  Remove the service hole cover.

9.  Remove screw A.

ac30zw00002304

10.  Remove screw B.

Caution
•  When removing the rear combination light from the body, it could interfere with the body and cause scratching or damage to the body. When removing the rear combination light from the body, apply protective tape to the body.

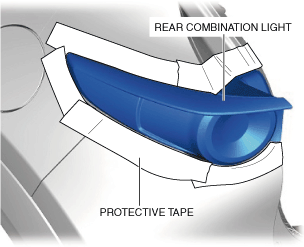

11.  To prevent scratches or damage, affix protective tape to the position shown in the figure.

ac30zw00002305

12.  Pull the rear combination light in the direction of the arrow shown in the figure and pull out the pin and the hook from the body.

ac30zw00002306

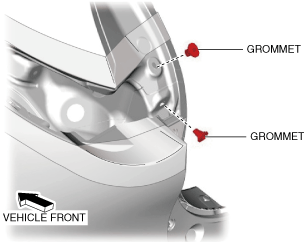

13.  Remove the grommets.

ac30zw00002307

14.  Install in the reverse order of removal.
