DTC U3003:68 [DSC HU/CM]
id040262014200
Outline

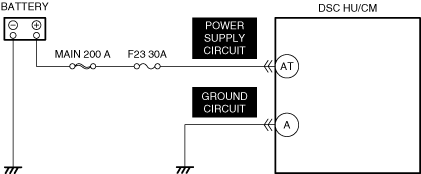

System malfunction location |
Power supply system |
||||
---|---|---|---|---|---|
Detection condition
|
• The DSC HU/CM shuts down while the electric parking brake motor gear unit is operating.
|
||||
Fail-safe
|
Refer to “DTC Table” and “Fail-safe Function Malfunction Contents Table”.(See DTC TABLE [DSC HU/CM (E)].)
|
||||
Possible cause
|
• DTCs are stored in the PCM.
• Battery malfunction
• Generator malfunction
• DSC HU/CM connector or terminals malfunction
• Short to ground or open circuit in DSC HU/CM power supply circuit
• Open circuit in DSC HU/CM ground circuit
• DSC HU/CM malfunction
|
||||
![]() |
|||||
![]() |
Diagnostic Procedure
Step |
Inspection |
Results |
Action |
---|---|---|---|
1
|
VERIFY OPERATION CONDITION BY CUSTOMER
• Verify if the customer switched the ignition OFF while pulling up/pressing down the electric parking brake switch.
• Did the customer switch the ignition OFF while pulling up/pressing down the electric parking brake switch?
|
Yes
|
The system is normal. (Explain to the customer that switching the ignition OFF while pulling up/pressing down the electric parking brake switch was the cause of the DTC being displayed, and explain how to appropriately operate the switch.)
|
No
|
Go to the next step.
|
||
2
|
INSPECT PCM FOR MALFUNCTION
• Perform the DTC inspection for PCM.
(See DTC INSPECTION.)
• Are any DTCs displayed?
|
Yes
|
Repair the malfunctioning location according to the applicable DTC troubleshooting.
(See DTC TABLE [PCM (SKYACTIV-D)].)
|
No
|
Go to the next step.
|
||
3
|
INSPECT BATTERY FOR MALFUNCTION
• Inspect the applicable part.
(See BATTERY INSPECTION [(E)].)
• Is the part normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification.
(See BATTERY RECHARGING [(E)].)
|
||
4
|
INSPECT GENERATOR FOR MALFUNCTION
• Inspect the applicable part.
• Is the part normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification.
|
||
5
|
INSPECT DSC HU/CM CONNECTOR FOR MALFUNCTION
• Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)
• Are the connector and terminal normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification.
|
||
6
|
INSPECT DSC HU/CM POWER SUPPLY CIRCUIT FOR SHORT TO GROUND AND OPEN CIRCUIT
• Inspect the power supply circuit for an open circuit and short to ground.
(See CIRCUIT INSPECTION.)
• Is the circuit normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification.
|
||
7
|
INSPECT DSC HU/CM GROUND CIRCUIT FOR OPEN CIRCUIT
• Inspect the applicable circuit for open circuit.
(See CIRCUIT INSPECTION.)
• Is the circuit normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification.
|
||
Repair completion verification 1
|
VERIFY THAT VEHICLE IS REPAIRED
• Install/connect the part removed/disconnected during the troubleshooting procedure.
• Clear the DTC recorded in the memory.
(See CLEARING DTC.)
• Perform the DTC inspection for the DSC HU/CM.
(See DTC INSPECTION.)
• Is the same Pending DTC present?
|
Yes
|
Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.
If the CAN communication is normal, perform the diagnosis from Step 1.
• If the malfunction recurs, replace the DSC HU/CM, then go to the next step.
|
No
|
Go to the next step.
|
||
Repair completion verification 2
|
VERIFY IF OTHER DTCs DISPLAYED
• Perform the DTC inspection.
(See DTC INSPECTION.)
• Are any DTCs displayed?
|
Yes
|
Repair the malfunctioning location according to the applicable DTC troubleshooting.
|
No
|
DTC troubleshooting completed.
|
