REAR VENT ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER]

Home  id0740a2653200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(2)  Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R].)

(3)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(4)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(5)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(6)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(7)  Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)

(8)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(9)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)

(10)  Rear vent duct (See REAR VENT DUCT REMOVAL/INSTALLATION.)

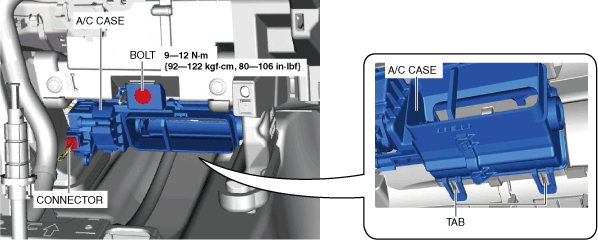

3.  Disconnect the connector.

am3zzw00032057

4.  Disconnect the bolt.

5.  Detach the tabs and remove the A/C case.

6.  Remove the screws.

ac30zw00004255

7.  Remove the rear vent actuator.

8.  Install in the reverse order of removal.
