DTC U2638:16 [BODY CONTROL MODULE (BCM) (E)]

Home  id0902r71154s3

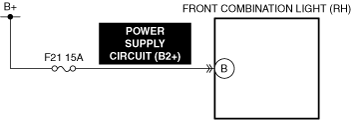

Without Mazda M Hybrid

Outline

System malfunction location	Light control module (RH) power supply circuit (B2+) malfunction
Detection condition	•  The light control module (RH) (built into front combination light (RH)) power supply circuit (B2+) voltage is lower than the standard.
Fail-safe	Not applicable
Possible cause	•  DTCs are stored in the PCM. •  Battery malfunction •  Malfunction in generator •  Front combination light (RH) connector or terminal malfunction •  Short to ground or open circuit in front combination light (RH) power supply circuit (B2+) •  Front combination light (RH) internal malfunction •  Body control module (BCM) malfunction

Diagnostic Procedure

Step	Inspection	Results	Action
1	VERIFY BODY CONTROL MODULE (BCM) DTCs AGAIN •  Clear the DTC recorded in the memory. (See CLEARING DTC.) •  Perform the DTC inspection for the body control module (BCM). (See DTC INSPECTION.) •  Is the same Pending DTC present?	Yes	Go to the next step.
		No	Go to repair completion verification 2.
2	INSPECT PCM FOR MALFUNCTION •  Perform the DTC inspection for the PCM. (See DTC INSPECTION.) •  Is a DTC displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-G (E))].) (See DTC TABLE [PCM (SKYACTIV-D)].)
		No	Go to the next step.
3	INSPECT BATTERY FOR MALFUNCTION •  Inspect the applicable part. (See BATTERY INSPECTION [(E)].) •  Is the part normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification. (See BATTERY RECHARGING [(E)].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
4	INSPECT GENERATOR FOR MALFUNCTION •  Inspect the applicable part. (See GENERATOR INSPECTION [SKYACTIV-D 1.8].) (See GENERATOR INSPECTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See GENERATOR INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].) •  Is the part normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification. (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
5	INSPECT FRONT COMBINATION LIGHT (RH) CONNECTOR FOR MALFUNCTION •  Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) •  Are the connector and terminal normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification.
6	INSPECT FRONT COMBINATION LIGHT (RH) POWER SUPPLY CIRCUIT (B2+) FOR SHORT TO GROUND AND OPEN CIRCUIT •  Inspect the applicable circuit for a short to ground and open circuit. (See CIRCUIT INSPECTION.) •  Is the circuit normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification.
7	INSPECT FRONT COMBINATION LIGHT (RH) FOR MALFUNCTION DEPENDING ON REPEATABILITY •  Install/connect the part removed/disconnected during the troubleshooting procedure. •  Clear the DTC recorded in the memory. (See CLEARING DTC.) •  Perform the DTC inspection for the body control module (BCM). (See DTC INSPECTION.) •  Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, replace the malfunctioning location and perform the repair completion verification. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)
		No	Go to repair completion verification 2.
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED •  Install/connect the part removed/disconnected during the troubleshooting procedure. •  Clear the DTC recorded in the memory. (See CLEARING DTC.) •  Perform the DTC inspection for the body control module (BCM). (See DTC INSPECTION.) •  Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, perform the diagnosis from Step 1. •  If the malfunction recurs, replace the body control module (BCM), then go to the next step. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)
		No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTC IS DISPLAYED •  Perform the DTC inspection. (See DTC INSPECTION.) •  Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
		No	DTC troubleshooting completed.

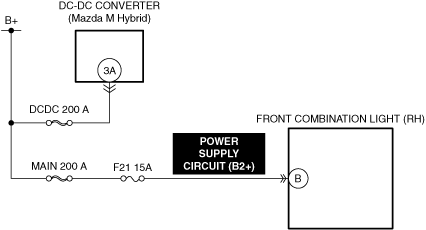

With Mazda M Hybrid

Outline

System malfunction location	Light control module (RH) power supply circuit (B2+) malfunction
Detection condition	•  The light control module (RH) (built into front combination light (RH)) power supply circuit (B2+) voltage is lower than the standard.
Fail-safe	Not applicable
Possible cause	•  DTCs are stored in the following modules. ―  PCM ―  Mazda M Hybrid battery ―  DC-DC converter (Mazda M Hybrid) ―  Integrated starter generator (ISG) •  Battery malfunction •  Front combination light (RH) connector or terminal malfunction •  Short to ground or open circuit in front combination light (RH) power supply circuit (B2+) •  Front combination light (RH) internal malfunction •  Body control module (BCM) malfunction

Diagnostic Procedure

Step	Inspection	Results	Action
1	VERIFY BODY CONTROL MODULE (BCM) DTCs AGAIN •  Clear the DTC recorded in the memory. (See CLEARING DTC.) •  Perform the DTC inspection for the body control module (BCM). (See DTC INSPECTION.) •  Is the same Pending DTC present?	Yes	Go to the next step.
		No	Go to repair completion verification 2.
2	VERIFY DTCs •  Perform the DTC inspection for the following modules. (See DTC INSPECTION.) ―  PCM ―  Mazda M Hybrid battery ―  DC-DC converter (Mazda M Hybrid) ―  Integrated starter generator (ISG) •  Are any DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-G (E))].) (See DTC TABLE [PCM (SKYACTIV-X)].) (See DTC TABLE [Mazda M Hybrid BATTERY].) (See DTC TABLE [DC-DC CONVERTER (Mazda M Hybrid)].) (See DTC TABLE [INTEGRATED STARTER GENERATOR (ISG)].)
		No	Go to the next step.
3	INSPECT BATTERY FOR MALFUNCTION •  Inspect the applicable part. (See BATTERY INSPECTION [(E)].) •  Is the part normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification. (See BATTERY RECHARGING [(E)].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-X 2.0].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
4	INSPECT FRONT COMBINATION LIGHT (RH) CONNECTOR FOR MALFUNCTION •  Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) •  Are the connector and terminal normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification.
5	INSPECT FRONT COMBINATION LIGHT (RH) POWER SUPPLY CIRCUIT (B2+) FOR SHORT TO GROUND AND OPEN CIRCUIT •  Inspect the applicable circuit for a short to ground and open circuit. (See CIRCUIT INSPECTION.) •  Is the circuit normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification.
6	INSPECT FRONT COMBINATION LIGHT (RH) FOR MALFUNCTION DEPENDING ON REPEATABILITY •  Install/connect the part removed/disconnected during the troubleshooting procedure. •  Clear the DTC recorded in the memory. (See CLEARING DTC.) •  Perform the DTC inspection for the body control module (BCM). (See DTC INSPECTION.) •  Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, replace the malfunctioning location and perform the repair completion verification. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)
		No	Go to repair completion verification 2.
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED •  Install/connect the part removed/disconnected during the troubleshooting procedure. •  Clear the DTC recorded in the memory. (See CLEARING DTC.) •  Perform the DTC inspection for the body control module (BCM). (See DTC INSPECTION.) •  Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, perform the diagnosis from Step 1. •  If the malfunction recurs, replace the body control module (BCM), then go to the next step. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)
		No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTC IS DISPLAYED •  Perform the DTC inspection. (See DTC INSPECTION.) •  Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
		No	DTC troubleshooting completed.
