STEERING LOCK UNIT REMOVAL/INSTALLATION

id091400061100

Replacement Part

Warning

•  Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(5)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

(6)  Driver-side knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(7)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(8)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)

(9)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(10)  Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(11)  Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(12)  Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION [(E)].)

(13)  Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION [(E)].)

(14)  Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)

(15)  Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)

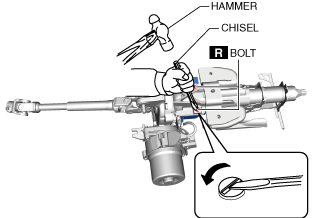

3.  Make a groove on the heads of the bolts by punching them with a chisel using a hammer.

ac30zw00005330

4.  Remove the bolts by rotating them counterclockwise.

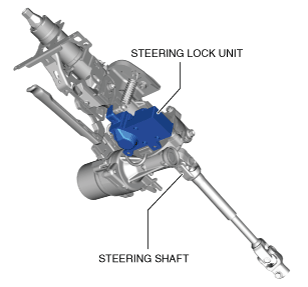

5.  Remove the steering lock unit.

ac30zw00000768

6.  Install in the reverse order of removal. (See Steering Lock Unit Installation Note.)

7.  If the steering lock unit is replaced, perform the immobilizer system-related part programming. (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [(E)].)

Steering Lock Unit Installation Note

1.  Temporarily install the steering lock unit to the steering shaft using new steering lock unit installation bolts.

2.  Tighten the steering lock unit installation bolts until the heads break off.

ac30zw00000769
