DTC B14F0:16 [VEHICLE CONTROL MODULE (E)]

id1502c50439cb

Without Mazda M Hybrid

Outline

System malfunction location

Forward sensing camera (FSC) low power supply voltage input

Detection condition

•  The vehicle control module (VCM) detects that the forward sensing camera (FSC) power supply circuit voltage was 8 V or less for 15 s.

Fail-safe

(See DTC TABLE [VEHICLE CONTROL MODULE (E)].)

Possible cause

Note

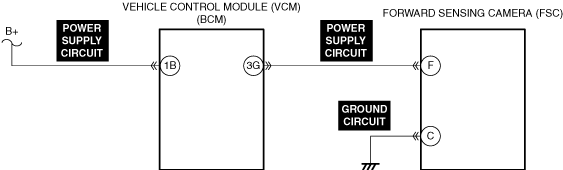

•  The forward sensing camera (FSC) is supplied power via the vehicle control module (VCM).

•  DTCs are stored in the PCM.

•  Battery malfunction

•  Malfunction in generator

•  Body control module (BCM) connector or terminal malfunction

•  Short to ground or open circuit in vehicle control module (VCM) power supply circuit

•  Forward sensing camera (FSC) connector or terminal malfunction

•  Forward sensing camera (FSC) ground circuit malfunction

•  Forward sensing camera (FSC) power supply circuit malfunction

―  Power supply circuit malfunction

―  Vehicle control module (VCM) internal malfunction

•  Forward sensing camera (FSC) malfunction

•  Vehicle control module (VCM) malfunction (built into body control module (BCM))

System malfunction location	Forward sensing camera (FSC) low power supply voltage input
Detection condition	• The vehicle control module (VCM) detects that the forward sensing camera (FSC) power supply circuit voltage was 8 V or less for 15 s.
Fail-safe	(See DTC TABLE [VEHICLE CONTROL MODULE (E)].)
Possible cause	Note • The forward sensing camera (FSC) is supplied power via the vehicle control module (VCM). • DTCs are stored in the PCM. • Battery malfunction • Malfunction in generator • Body control module (BCM) connector or terminal malfunction • Short to ground or open circuit in vehicle control module (VCM) power supply circuit • Forward sensing camera (FSC) connector or terminal malfunction • Forward sensing camera (FSC) ground circuit malfunction • Forward sensing camera (FSC) power supply circuit malfunction ― Power supply circuit malfunction ― Vehicle control module (VCM) internal malfunction • Forward sensing camera (FSC) malfunction • Vehicle control module (VCM) malfunction (built into body control module (BCM))

Diagnostic Procedure

Step

Inspection

Results

Action

1

INSPECT VEHICLE CONTROL MODULE (VCM) AND BODY CONTROL MODULE (BCM) FOR MALFUNCTION

•  Perform the DTC inspection for the vehicle control module (VCM) and the body control module (BCM).
(See DTC INSPECTION.)

•  Is a DTC related to an internal malfunction displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [VEHICLE CONTROL MODULE (E)].)

(See DTC TABLE [BODY CONTROL MODULE (BCM) (E)].)

No

Go to the next step.

2

INSPECT FORWARD SENSING CAMERA (FSC) FOR MALFUNCTION

•  Perform the DTC inspection for the forward sensing camera (FSC).
(See DTC INSPECTION.)

•  Is a DTC displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [FORWARD SENSING CAMERA (FSC) (E)].)

No

Go to the next step.

3

INSPECT PCM FOR MALFUNCTION

•  Perform the DTC inspection for the PCM.
(See DTC INSPECTION.)

•  Is a DTC displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PCM (SKYACTIV-G (E))].)

(See DTC TABLE [PCM (SKYACTIV-D)].)

No

Go to the next step.

4

INSPECT BATTERY FOR MALFUNCTION

•  Inspect the applicable part.
(See BATTERY INSPECTION [(E)].)

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See BATTERY RECHARGING [(E)].)

(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)

5

INSPECT GENERATOR FOR MALFUNCTION

•  Inspect the applicable part.
(See GENERATOR INSPECTION [SKYACTIV-D 1.8].)

(See GENERATOR INSPECTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

(See GENERATOR INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

(See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

(See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)

6

INSPECT BODY CONTROL MODULE (BCM) CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

7

INSPECT VEHICLE CONTROL MODULE (VCM) POWER SUPPLY CIRCUIT FOR SHORT TO GROUND AND OPEN CIRCUIT

•  Inspect the power supply circuit for a short to ground and an open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

8

INSPECT FORWARD SENSING CAMERA (FSC) CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

9

INSPECT FORWARD SENSING CAMERA (FSC) GROUND CIRCUIT FOR OPEN CIRCUIT

•  Inspect the applicable circuit for open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

10

INSPECT FORWARD SENSING CAMERA (FSC) POWER SUPPLY CIRCUIT FOR SHORT TO GROUND AND OPEN CIRCUIT

•  Inspect the applicable circuit for a short to ground and an open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

11

VERIFY VEHICLE CONTROL MODULE (VCM) POWER SUPPLY VOLTAGE

•  Reconnect all the disconnected connectors.

•  Connect the negative battery terminal.

(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

•  Measure the voltage at body control module (BCM) terminal 3G.

•  Is the voltage normal?
(See BODY CONTROL MODULE (BCM) INSPECTION [(E)].)

Yes

Go to the next step.

No

Replace the body control module (BCM) and perform the repair completion verification.

(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)

12

INSPECT FORWARD SENSING CAMERA (FSC) FOR MALFUNCTION DEPENDING ON REPEATABILITY

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the vehicle control module (VCM).
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, replace the forward sensing camera (FSC) and perform the repair completion verification.

(See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.)

No

Perform the [ACTION FOR NON-REPEATABLE MALFUNCTIONS].

(See TROUBLESHOOTING PROCEDURE [(E)].)

If DTC is displayed

•  Repeat the diagnosis from Step 1.

If DTC is not displayed

•  Go to repair completion verification 2.

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the vehicle control module (VCM).
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the body control module (BCM), then go to the next step.
(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTC IS DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	INSPECT VEHICLE CONTROL MODULE (VCM) AND BODY CONTROL MODULE (BCM) FOR MALFUNCTION • Perform the DTC inspection for the vehicle control module (VCM) and the body control module (BCM). (See DTC INSPECTION.) • Is a DTC related to an internal malfunction displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [VEHICLE CONTROL MODULE (E)].) (See DTC TABLE [BODY CONTROL MODULE (BCM) (E)].)
No	Go to the next step.
2	INSPECT FORWARD SENSING CAMERA (FSC) FOR MALFUNCTION • Perform the DTC inspection for the forward sensing camera (FSC). (See DTC INSPECTION.) • Is a DTC displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [FORWARD SENSING CAMERA (FSC) (E)].)
No	Go to the next step.
3	INSPECT PCM FOR MALFUNCTION • Perform the DTC inspection for the PCM. (See DTC INSPECTION.) • Is a DTC displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-G (E))].) (See DTC TABLE [PCM (SKYACTIV-D)].)
No	Go to the next step.
4	INSPECT BATTERY FOR MALFUNCTION • Inspect the applicable part. (See BATTERY INSPECTION [(E)].) • Is the part normal?	Yes	Go to the next step.
No	Repair or replace the malfunctioning location and perform the repair completion verification. (See BATTERY RECHARGING [(E)].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
5	INSPECT GENERATOR FOR MALFUNCTION • Inspect the applicable part. (See GENERATOR INSPECTION [SKYACTIV-D 1.8].) (See GENERATOR INSPECTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See GENERATOR INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].) • Is the part normal?	Yes	Go to the next step.
No	Repair or replace the malfunctioning location and perform the repair completion verification. (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
6	INSPECT BODY CONTROL MODULE (BCM) CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
No	Repair or replace the malfunctioning location and perform the repair completion verification.
7	INSPECT VEHICLE CONTROL MODULE (VCM) POWER SUPPLY CIRCUIT FOR SHORT TO GROUND AND OPEN CIRCUIT • Inspect the power supply circuit for a short to ground and an open circuit. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
No	Repair or replace the malfunctioning location and perform the repair completion verification.
8	INSPECT FORWARD SENSING CAMERA (FSC) CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
No	Repair or replace the malfunctioning location and perform the repair completion verification.
9	INSPECT FORWARD SENSING CAMERA (FSC) GROUND CIRCUIT FOR OPEN CIRCUIT • Inspect the applicable circuit for open circuit. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
No	Repair or replace the malfunctioning location and perform the repair completion verification.
10	INSPECT FORWARD SENSING CAMERA (FSC) POWER SUPPLY CIRCUIT FOR SHORT TO GROUND AND OPEN CIRCUIT • Inspect the applicable circuit for a short to ground and an open circuit. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
No	Repair or replace the malfunctioning location and perform the repair completion verification.
11	VERIFY VEHICLE CONTROL MODULE (VCM) POWER SUPPLY VOLTAGE • Reconnect all the disconnected connectors. • Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].) • Measure the voltage at body control module (BCM) terminal 3G. • Is the voltage normal? (See BODY CONTROL MODULE (BCM) INSPECTION [(E)].)	Yes	Go to the next step.
No	Replace the body control module (BCM) and perform the repair completion verification. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)
12	INSPECT FORWARD SENSING CAMERA (FSC) FOR MALFUNCTION DEPENDING ON REPEATABILITY • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Perform the DTC inspection for the vehicle control module (VCM). (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, replace the forward sensing camera (FSC) and perform the repair completion verification. (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.)
No	Perform the [ACTION FOR NON-REPEATABLE MALFUNCTIONS]. (See TROUBLESHOOTING PROCEDURE [(E)].) If DTC is displayed • Repeat the diagnosis from Step 1. If DTC is not displayed • Go to repair completion verification 2.
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Perform the DTC inspection for the vehicle control module (VCM). (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, perform the diagnosis from Step 1. • If the malfunction recurs, replace the body control module (BCM), then go to the next step. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)
No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTC IS DISPLAYED • Perform the DTC inspection. (See DTC INSPECTION.) • Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
No	DTC troubleshooting completed.

With Mazda M Hybrid

Outline

System malfunction location

Forward sensing camera (FSC) low power supply voltage input

Detection condition

•  The vehicle control module (VCM) detects that the forward sensing camera (FSC) power supply circuit voltage was 8 V or less for 15 s.

Fail-safe

(See DTC TABLE [VEHICLE CONTROL MODULE (E)].)

Possible cause

Note

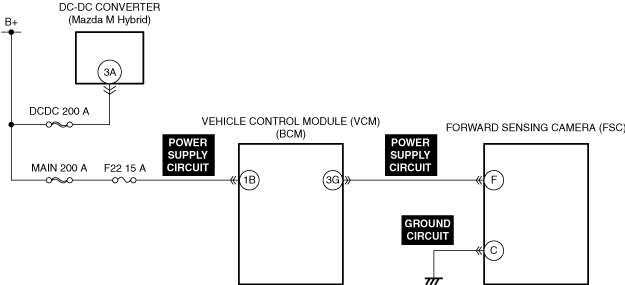

•  The forward sensing camera (FSC) is supplied power via the vehicle control module (VCM).

•  DTCs are stored in the following modules.

―  PCM

―  Mazda M Hybrid battery

―  DC-DC converter (Mazda M Hybrid)

―  Integrated starter generator (ISG)

•  Battery malfunction

•  Body control module (BCM) connector or terminal malfunction

•  Short to ground or open circuit in vehicle control module (VCM) power supply circuit

•  Forward sensing camera (FSC) connector or terminal malfunction

•  Forward sensing camera (FSC) ground circuit malfunction

•  Forward sensing camera (FSC) power supply circuit malfunction

―  Power supply circuit malfunction

―  Vehicle control module (VCM) internal malfunction

•  Forward sensing camera (FSC) malfunction

•  Vehicle control module (VCM) malfunction (built into body control module (BCM))

System malfunction location	Forward sensing camera (FSC) low power supply voltage input
Detection condition	• The vehicle control module (VCM) detects that the forward sensing camera (FSC) power supply circuit voltage was 8 V or less for 15 s.
Fail-safe	(See DTC TABLE [VEHICLE CONTROL MODULE (E)].)
Possible cause	Note • The forward sensing camera (FSC) is supplied power via the vehicle control module (VCM). • DTCs are stored in the following modules. ― PCM ― Mazda M Hybrid battery ― DC-DC converter (Mazda M Hybrid) ― Integrated starter generator (ISG) • Battery malfunction • Body control module (BCM) connector or terminal malfunction • Short to ground or open circuit in vehicle control module (VCM) power supply circuit • Forward sensing camera (FSC) connector or terminal malfunction • Forward sensing camera (FSC) ground circuit malfunction • Forward sensing camera (FSC) power supply circuit malfunction ― Power supply circuit malfunction ― Vehicle control module (VCM) internal malfunction • Forward sensing camera (FSC) malfunction • Vehicle control module (VCM) malfunction (built into body control module (BCM))

Diagnostic Procedure

Step

Inspection

Results

Action

1

INSPECT VEHICLE CONTROL MODULE (VCM) AND BODY CONTROL MODULE (BCM) FOR MALFUNCTION

•  Perform the DTC inspection for the vehicle control module (VCM) and the body control module (BCM).
(See DTC INSPECTION.)

•  Is a DTC related to an internal malfunction displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [VEHICLE CONTROL MODULE (E)].)

(See DTC TABLE [BODY CONTROL MODULE (BCM) (E)].)

No

Go to the next step.

2

INSPECT FORWARD SENSING CAMERA (FSC) FOR MALFUNCTION

•  Perform the DTC inspection for the forward sensing camera (FSC).
(See DTC INSPECTION.)

•  Is a DTC displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [FORWARD SENSING CAMERA (FSC) (E)].)

No

Go to the next step.

3

VERIFY DTCs

•  Perform the DTC inspection for the following modules.
(See DTC INSPECTION.)

―  PCM

―  Mazda M Hybrid battery

―  DC-DC converter (Mazda M Hybrid)

―  Integrated starter generator (ISG)

•  Are any DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PCM (SKYACTIV-G (E))].)

(See DTC TABLE [PCM (SKYACTIV-X)].)

(See DTC TABLE [Mazda M Hybrid BATTERY].)

(See DTC TABLE [DC-DC CONVERTER (Mazda M Hybrid)].)

(See DTC TABLE [INTEGRATED STARTER GENERATOR (ISG)].)

No

Go to the next step.

4

INSPECT BATTERY FOR MALFUNCTION

•  Inspect the applicable part.
(See BATTERY INSPECTION [(E)].)

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See BATTERY RECHARGING [(E)].)

(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)

(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

5

INSPECT BODY CONTROL MODULE (BCM) CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

6

INSPECT VEHICLE CONTROL MODULE (VCM) POWER SUPPLY CIRCUIT FOR SHORT TO GROUND AND OPEN CIRCUIT

•  Inspect the power supply circuit for a short to ground and an open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

7

INSPECT FORWARD SENSING CAMERA (FSC) CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

8

INSPECT FORWARD SENSING CAMERA (FSC) GROUND CIRCUIT FOR OPEN CIRCUIT

•  Inspect the applicable circuit for open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

9

INSPECT FORWARD SENSING CAMERA (FSC) POWER SUPPLY CIRCUIT FOR SHORT TO GROUND AND OPEN CIRCUIT

•  Inspect the applicable circuit for a short to ground and an open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

10

VERIFY VEHICLE CONTROL MODULE (VCM) POWER SUPPLY VOLTAGE

•  Reconnect all the disconnected connectors.

•  Connect the negative battery terminal.

(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

•  Measure the voltage at body control module (BCM) terminal 3G.

•  Is the voltage normal?
(See BODY CONTROL MODULE (BCM) INSPECTION [(E)].)

Yes

Go to the next step.

No

Replace the body control module (BCM) and perform the repair completion verification.

(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)

11

INSPECT FORWARD SENSING CAMERA (FSC) FOR MALFUNCTION DEPENDING ON REPEATABILITY

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the vehicle control module (VCM).
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, replace the forward sensing camera (FSC) and perform the repair completion verification.

(See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.)

No

Perform the [ACTION FOR NON-REPEATABLE MALFUNCTIONS].

(See TROUBLESHOOTING PROCEDURE [(E)].)

If DTC is displayed

•  Repeat the diagnosis from Step 1.

If DTC is not displayed

•  Go to repair completion verification 2.

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the vehicle control module (VCM).
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the body control module (BCM), then go to the next step.
(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTC IS DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.
