DTC C1A67:16 [VEHICLE CONTROL MODULE (E)]

id1502c50580cb

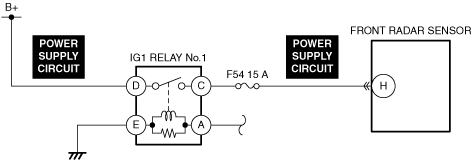

Without Mazda M Hybrid

Outline

System malfunction location	Front radar sensor low power supply voltage input
Detection condition	•  The vehicle control module (VCM) detects that the front radar sensor power supply circuit voltage was 8.5 V or less for 11 s.
Fail-safe	(See DTC TABLE [VEHICLE CONTROL MODULE (E)].)
Possible cause	•  DTCs are stored in the PCM. •  Battery malfunction •  Malfunction in generator •  Front radar sensor connector or terminal malfunction •  IG1 relay No.1 malfunction •  Short to ground or open circuit in IG1 relay No.1 power supply circuit •  Short to ground or open circuit in front radar sensor power supply circuit •  Front radar sensor malfunction •  Vehicle control module (VCM) malfunction (built into body control module (BCM))

Diagnostic Procedure

Step	Inspection	Results	Action
1	INSPECT VEHICLE CONTROL MODULE (VCM) AND BODY CONTROL MODULE (BCM) FOR MALFUNCTION •  Perform the DTC inspection for the vehicle control module (VCM) and the body control module (BCM). (See DTC INSPECTION.) •  Is a DTC related to an internal malfunction displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [VEHICLE CONTROL MODULE (E)].) (See DTC TABLE [BODY CONTROL MODULE (BCM) (E)].)
		No	Go to the next step.
2	INSPECT FRONT RADAR SENSOR FOR MALFUNCTION •  Perform the DTC inspection for the front radar sensor. (See DTC INSPECTION.) •  Is a DTC displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [FRONT RADAR SENSOR (E)].)
		No	Go to the next step.
3	VERIFY PCM DTCs •  Perform the DTC inspection for the PCM. (See DTC INSPECTION.) •  Is a DTC displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-G (E))].) (See DTC TABLE [PCM (SKYACTIV-D)].)
		No	Go to the next step.
4	VERIFY ALL SYSTEM DTCs •  Perform the CMDTC self-test. (See DTC INSPECTION.) •  Are any DTCs related to the power supply voltage input in multiple modules displayed?	Yes	Go to the next step.
		No	Go to Step 7.
5	INSPECT BATTERY FOR MALFUNCTION •  Inspect the applicable part. (See BATTERY INSPECTION [(E)].) •  Is the part normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification. (See BATTERY RECHARGING [(E)].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
6	INSPECT GENERATOR FOR MALFUNCTION •  Inspect the applicable part. (See GENERATOR INSPECTION [SKYACTIV-D 1.8].) (See GENERATOR INSPECTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See GENERATOR INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].) •  Is the part normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification. (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
7	INSPECT FRONT RADAR SENSOR CONNECTOR FOR MALFUNCTION •  Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) •  Are the connector and terminal normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification.
8	INSPECT IG1 RELAY No.1 FOR MALFUNCTION •  Inspect the applicable part. (See RELAY INSPECTION.) •  Is the part normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification. (See RELAY LOCATION [(E)].)
9	INSPECT IG1 RELAY No.1 POWER SUPPLY CIRCUIT FOR SHORT TO GROUND AND OPEN CIRCUIT •  Inspect the applicable circuit for a short to ground and an open circuit. (See CIRCUIT INSPECTION.) •  Is the circuit normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification.
10	INSPECT FRONT RADAR SENSOR POWER SUPPLY CIRCUIT FOR SHORT TO GROUND AND OPEN CIRCUIT •  Inspect the applicable circuit for a short to ground and an open circuit. (See CIRCUIT INSPECTION.) •  Is the circuit normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification.
11	INSPECT FRONT RADAR SENSOR FOR MALFUNCTION DEPENDING ON REPEATABILITY •  Install/connect the part removed/disconnected during the troubleshooting procedure. •  Clear the DTC recorded in the memory. (See CLEARING DTC.) •  Perform the DTC inspection for the vehicle control module (VCM). (See DTC INSPECTION.) •  Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, replace the front radar sensor and perform the repair completion verification. (See FRONT RADAR SENSOR REMOVAL/INSTALLATION.)
		No	Perform the [ACTION FOR NON-REPEATABLE MALFUNCTIONS]. (See TROUBLESHOOTING PROCEDURE [(E)].) If DTC is displayed •  Repeat the diagnosis from Step 1. If DTC is not displayed •  Go to repair completion verification 2.
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED •  Install/connect the part removed/disconnected during the troubleshooting procedure. •  Clear the DTC recorded in the memory. (See CLEARING DTC.) •  Perform the DTC inspection for the vehicle control module (VCM). (See DTC INSPECTION.) •  Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, perform the diagnosis from Step 1. •  If the malfunction recurs, replace the body control module (BCM), then go to the next step. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)
		No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTC IS DISPLAYED •  Perform the DTC inspection. (See DTC INSPECTION.) •  Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
		No	DTC troubleshooting completed.

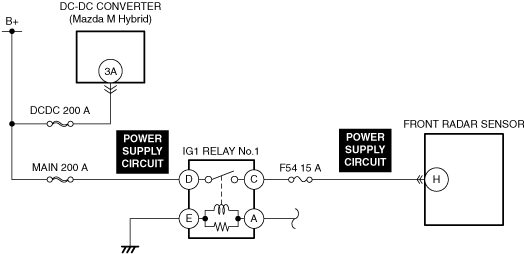

With Mazda M Hybrid

Outline

System malfunction location	Front radar sensor low power supply voltage input
Detection condition	•  The vehicle control module (VCM) detects that the front radar sensor power supply circuit voltage was 8.5 V or less for 11 s.
Fail-safe	(See DTC TABLE [VEHICLE CONTROL MODULE (E)].)
Possible cause	•  DTCs are stored in the following modules. ―  PCM ―  Mazda M Hybrid battery ―  DC-DC converter (Mazda M Hybrid) ―  Integrated starter generator (ISG) •  Battery malfunction •  Front radar sensor connector or terminal malfunction •  IG1 relay No.1 malfunction •  Short to ground or open circuit in IG1 relay No.1 power supply circuit •  Short to ground or open circuit in front radar sensor power supply circuit •  Front radar sensor malfunction •  Vehicle control module (VCM) malfunction (built into body control module (BCM))

Diagnostic Procedure

Step	Inspection	Results	Action
1	INSPECT VEHICLE CONTROL MODULE (VCM) AND BODY CONTROL MODULE (BCM) FOR MALFUNCTION •  Perform the DTC inspection for the vehicle control module (VCM) and the body control module (BCM). (See DTC INSPECTION.) •  Is a DTC related to an internal malfunction displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [VEHICLE CONTROL MODULE (E)].) (See DTC TABLE [BODY CONTROL MODULE (BCM) (E)].)
		No	Go to the next step.
2	INSPECT FRONT RADAR SENSOR FOR MALFUNCTION •  Perform the DTC inspection for the front radar sensor. (See DTC INSPECTION.) •  Is a DTC displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [FRONT RADAR SENSOR (E)].)
		No	Go to the next step.
3	VERIFY DTCs •  Perform the DTC inspection for the following modules. (See DTC INSPECTION.) ―  PCM ―  Mazda M Hybrid battery ―  DC-DC converter (Mazda M Hybrid) ―  Integrated starter generator (ISG) •  Are any DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-G (E))].) (See DTC TABLE [PCM (SKYACTIV-X)].) (See DTC TABLE [Mazda M Hybrid BATTERY].) (See DTC TABLE [DC-DC CONVERTER (Mazda M Hybrid)].) (See DTC TABLE [INTEGRATED STARTER GENERATOR (ISG)].)
		No	Go to the next step.
4	VERIFY ALL SYSTEM DTCs •  Perform the CMDTC self-test. (See DTC INSPECTION.) •  Are any DTCs related to the power supply voltage input in multiple modules displayed?	Yes	Go to the next step.
		No	Go to Step 6.
5	INSPECT BATTERY FOR MALFUNCTION •  Inspect the applicable part. (See BATTERY INSPECTION [(E)].) •  Is the part normal?	Yes	Note •  If the diagnostic procedure in Step 6 through Step 9 has been completed, go to Step 10. Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification. (See BATTERY RECHARGING [(E)].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
6	INSPECT FRONT RADAR SENSOR CONNECTOR FOR MALFUNCTION •  Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) •  Are the connector and terminal normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification.
7	INSPECT IG1 RELAY No.1 FOR MALFUNCTION •  Inspect the applicable part. (See RELAY INSPECTION.) •  Is the part normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification. (See RELAY LOCATION [(E)].)
8	INSPECT IG1 RELAY No.1 POWER SUPPLY CIRCUIT FOR SHORT TO GROUND AND OPEN CIRCUIT •  Inspect the applicable circuit for a short to ground and an open circuit. (See CIRCUIT INSPECTION.) •  Is the circuit normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification.
9	INSPECT FRONT RADAR SENSOR POWER SUPPLY CIRCUIT FOR SHORT TO GROUND AND OPEN CIRCUIT •  Inspect the applicable circuit for a short to ground and an open circuit. (See CIRCUIT INSPECTION.) •  Is the circuit normal?	Yes	Note •  If the diagnostic procedure Step 5 has not been completed, go to Step 5. Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification.
10	INSPECT FRONT RADAR SENSOR FOR MALFUNCTION DEPENDING ON REPEATABILITY •  Install/connect the part removed/disconnected during the troubleshooting procedure. •  Clear the DTC recorded in the memory. (See CLEARING DTC.) •  Perform the DTC inspection for the vehicle control module (VCM). (See DTC INSPECTION.) •  Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, replace the front radar sensor and perform the repair completion verification. (See FRONT RADAR SENSOR REMOVAL/INSTALLATION.)
		No	Perform the [ACTION FOR NON-REPEATABLE MALFUNCTIONS]. (See TROUBLESHOOTING PROCEDURE [(E)].) If DTC is displayed •  Repeat the diagnosis from Step 1. If DTC is not displayed •  Go to repair completion verification 2.
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED •  Install/connect the part removed/disconnected during the troubleshooting procedure. •  Clear the DTC recorded in the memory. (See CLEARING DTC.) •  Perform the DTC inspection for the vehicle control module (VCM). (See DTC INSPECTION.) •  Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, perform the diagnosis from Step 1. •  If the malfunction recurs, replace the body control module (BCM), then go to the next step. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)
		No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTC IS DISPLAYED •  Perform the DTC inspection. (See DTC INSPECTION.) •  Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
		No	DTC troubleshooting completed.
