TIMING CHAIN REMOVAL/INSTALLATION [SKYACTIV-D 1.8]

Home  id0110t1801000

Special Service Tool (SST)

1.  : Mazda SST number 2.  : Global SST number
1: 49 C017 5A0 2: –   Engine support set		1: 49 UN30 3050 2: 303–050   Engine lifting bracket		1: 49 L017 5A0 2: –   Support hanger

Replacement Part

Oil and Chemical Type

Operation After Replacing Timing Chain

1.  After replacing the timing chain, perform the following procedure.

STEP	ACTION	PAGE/CONDITION
1	Perform KOEO self-test procedure.	(See DTC INSPECTION.)
2	Start the engine.	—
3	Verify that the check engine light does not illuminate.	—
4	Perform KOER self-test procedure.	(See DTC INSPECTION.)
5	Perform fuel injector injection amount correction.	(See FUEL INJECTOR INJECTION AMOUNT CORRECTION [SKYACTIV-D 1.8].)
6	Perform timing chain learning procedure.	(See TIMING CHAIN LEARNING [SKYACTIV-D 1.8].)
7	Clear the DTCs.	(See BASIC KNOWLEDGE.)
8	Switch the ignition off.	—

Timing Chain Removal/Installation

Warning

•  A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.

Caution

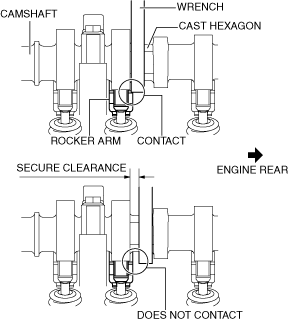

•  When rotating the camshaft using a wrench on the cast hexagon, the wrench may contact the rocker arm and damage the rocker arm. To prevent damage to the rocker arm when holding the camshaft on the cast hexagon, use a wrench on the rear side of the engine as shown in the figure to secure a clearance between the cam.

am3uuw00008837

Note

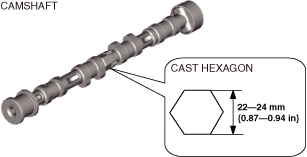

•  Width at the cast hexagon of the camshaft is 22—24 mm {0.87—0.94 in}.

ac3wzw00004860

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

3.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

4.  Remove the front splash shield. (RH) (See SPLASH SHIELD REMOVAL/INSTALLATION.)

5.  Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

6.  Drain the engine oil. (See ENGINE OIL REPLACEMENT [SKYACTIV-D 1.8].)

7.  Remove the oil pan. (See OIL PAN REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

8.  Remove the fuel injectors. (See FUEL INJECTOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

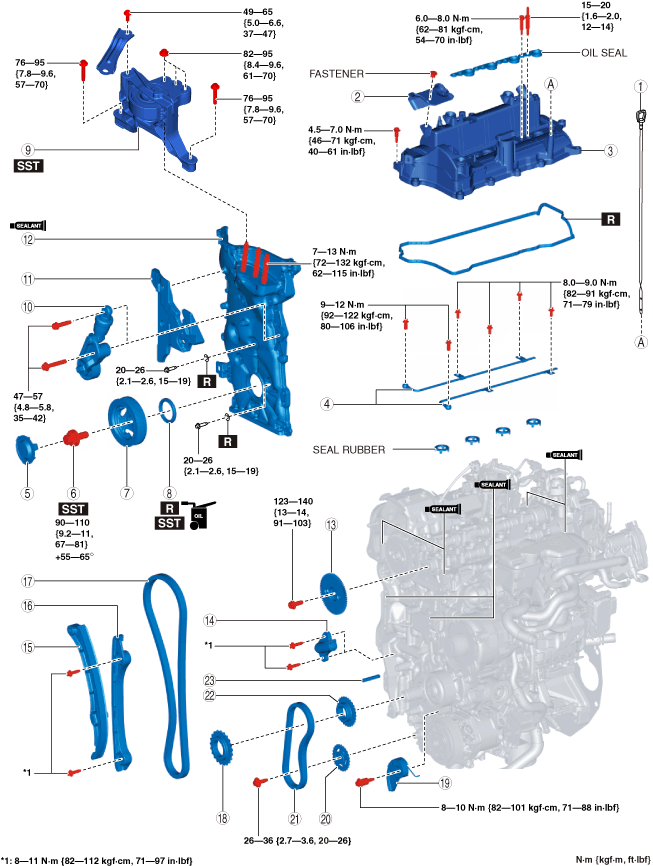

9.  Remove in the order indicated in the table.

10.  Install in the reverse order of removal.

11.  Refill with the specified type and amount of the engine oil. (See ENGINE OIL REPLACEMENT [SKYACTIV-D 1.8].)

12.  If the timing chain is replaced, perform “Operation After Replacing Timing Chain”. (See Operation After Replacing Timing Chain.)

13.  Start the engine and inspect the following:

•  Leakage of engine oil.

•  Oil level (See ENGINE OIL LEVEL INSPECTION [SKYACTIV-D 1.8].)

•  Runout and contact of pulley and belt.

•  Idle speed (See ENGINE TUNE-UP [SKYACTIV-D 1.8].)

ac30zw00002726

1	Dipstick
2	Insulator
3	Cylinder head cover (See Cylinder head cover removal note.) (See Cylinder head cover installation note.)
4	Oil shower pipe (See Oil shower pipe installation note.)
5	Crankshaft pulley cover (See FRONT OIL SEAL REPLACEMENT [SKYACTIV-D 1.8].)
6	Crankshaft pulley lock bolt (See FRONT OIL SEAL REPLACEMENT [SKYACTIV-D 1.8].)
7	Crankshaft pulley (See FRONT OIL SEAL REPLACEMENT [SKYACTIV-D 1.8].)
8	Front oil seal (See FRONT OIL SEAL REPLACEMENT [SKYACTIV-D 1.8].)
9	No.3 engine mount (See No.3 engine mount removal note.) (See No.3 engine mount installation note.)
10	Drive belt auto tensioner (See DRIVE BELT AUTO TENSIONER REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
11	Seal rubber (See Seal rubber removal note.) (See Seal rubber installation note.)
12	Engine front cover (See Engine front cover removal note.) (See Engine front cover installation note.)
13	Intake camshaft sprocket (See Intake camshaft sprocket removal note.) (See Intake camshaft sprocket installation note.)
14	Timing chain tensioner (See Timing chain removal note.) (See Timing chain installation note.)
15	Timing chain tensioner arm (See Timing chain removal note.) (See Timing chain installation note.)
16	Timing chain guide (See Timing chain removal note.) (See Timing chain installation note.)
17	Timing chain (See Timing chain removal note.) (See Timing chain installation note.)
18	Crankshaft sprocket (See Timing chain removal note.) (See Timing chain installation note.)
19	Oil pump chain tensioner (See Oil pump chain tensioner installation note.)
20	Oil pump driven sprocket (See Oil pump driven sprocket removal note.) (See Oil pump driven sprocket installation note.)
21	Oil pump chain
22	Oil pump drive sprocket
23	Key

Cylinder head cover removal note

1.  Disconnect the breather hose from the cylinder head cover. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

2.  Remove the vacuum pipe. (See SUPPLY PUMP REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

3.  Remove the fuel feed pipe. (See SUPPLY PUMP REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

4.  Remove the injection pipe (supply pump side). (See INJECTION PIPE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

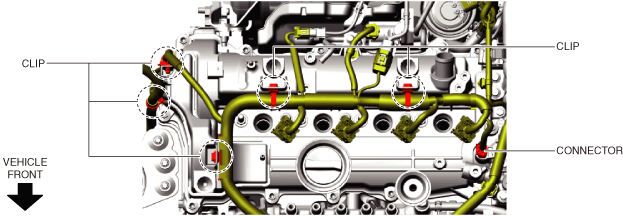

5.  Remove the clips and connector shown in the figure.

ac3wzw00004862

6.  Set the turbocharger solenoid valve component aside using the following procedure:

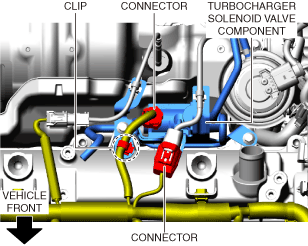

(1)  Remove the clip and connectors.

ac3wzw00004863

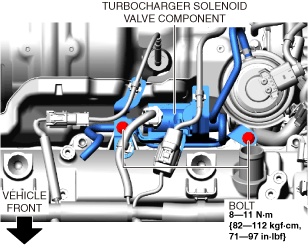

(2)  Remove the bolts.

am3zzw00034388

(3)  Set the turbocharger solenoid valve component aside.

7.  Remove the fuel return hose. (See COMMON RAIL REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

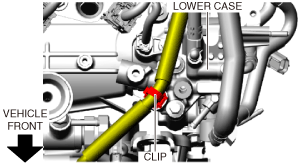

8.  Set the lower case aside using the following procedure:

(1)  Remove the clip.

ac3wzw00004866

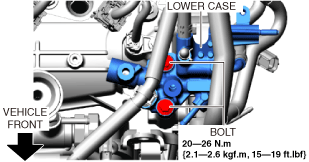

(2)  Remove the bolts.

am3zzw00034389

(3)  Set the lower case aside to the left side of the vehicle with the hose connected.

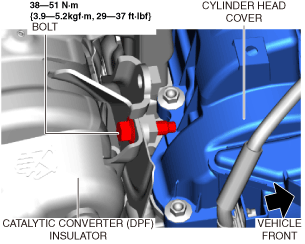

9.  Loosen the bolt shown in the figure.

am3zzw00034390

10.  Remove the cylinder head cover.

No.3 engine mount removal note

1.  Disconnect the ground cable shown in the figure.

am3zzw00034391

2.  Remove the bolt shown in the figure and remove the wiring harness protector.

am3zzw00034392

3.  Set the PCM component aside with the PCM connector connected so that it does not interfere with the servicing. (See PCM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

am2zzw00010275

4.  Remove the nut shown in the figure and set the cooler hose (LO) aside.

am3zzw00029884

5.  Remove the bolts shown in the figure and remove the PCM bracket.

am3zzw00029883

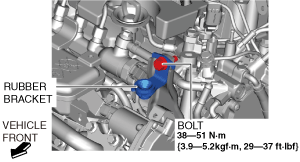

6.  Remove the rubber bracket.

am3zzw00034393

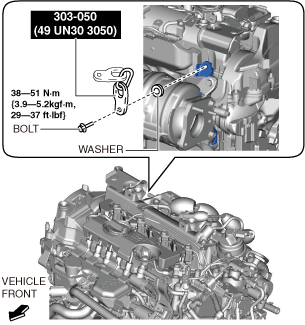

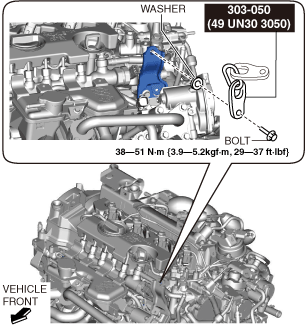

7.  Install the SST to the position shown in the figure using the following bolt and washer.

am3zzw00034394

am3zzw00034395

Caution

•  Slots have been adopted for the No.3 engine mount installation holes. If the No.3 engine mount is deviated from the original position when installing the No.3 engine mount, engine noise or vibration could increase. Before removing the No.3 engine mount, place alignment marks on the No.3 engine mount and body so that they can be assembled to the same positions as before removal.

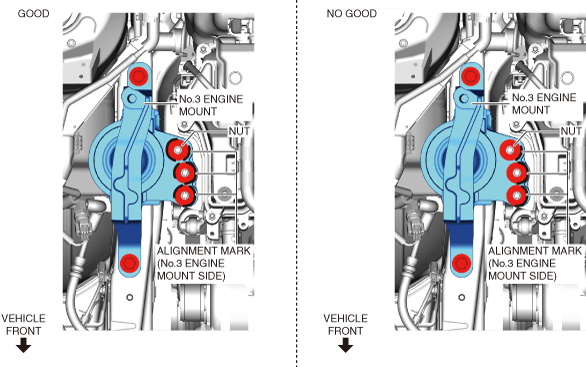

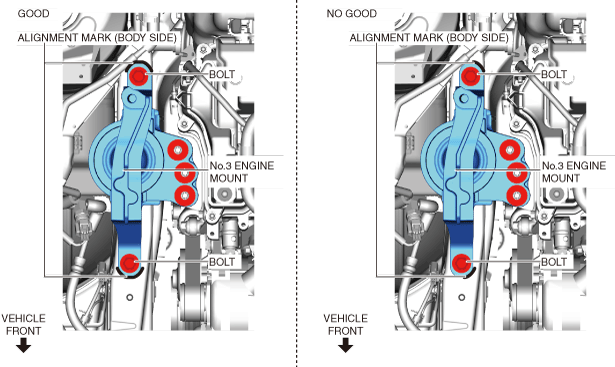

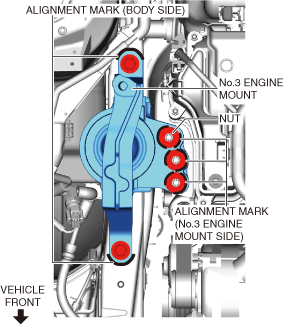

8.  Place alignment marks on the locations shown in the figure so that they can be assembled to the same positions as before removal.

am3zzw00029869

Note

•  Paint so that the No.3 engine mount is framed on the body side and the outline of the nut is framed on the No.3 engine mount side.

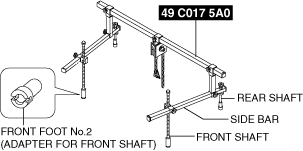

9.  Install the SST using the following procedures.

am3zzw00029870

Caution

•  Refer to the SST instruction manual for the basic handing procedure.

(1)  Install one front foot No.2 to each of the left and right front shafts of the SST.

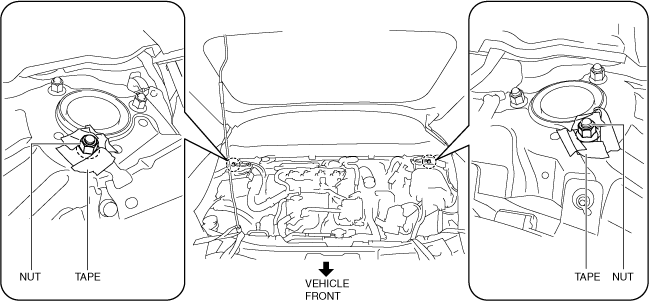

(2)  Protect the positions shown in the area using tape.

am3zzw00029871

(3)  Remove the coolant reserve tank. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

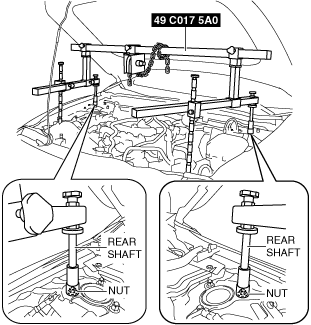

(4)  As shown in the figure, set the rear shafts of the SST to the left and right front shock absorber nuts.

am3zzw00029875

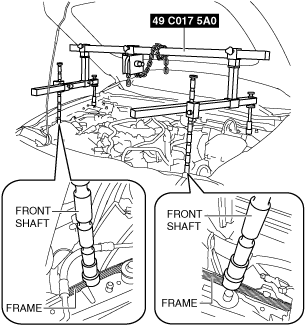

(5)  Set the front shafts of the SST (49 C017 5A0) as shown in the figure.

am3zzw00029876

(6)  To prevent interference of the SST with the hose when assembling the SST (49 L017 5A0), disconnect the hose clip from the bracket shown in the figure and set the fuel hose and vacuum hose aside.

am3zzw00029877

(7)  Install the SST (49 L017 5A0) to the SST (49 C017 5A0) as shown in the figure.

am3zzw00029878

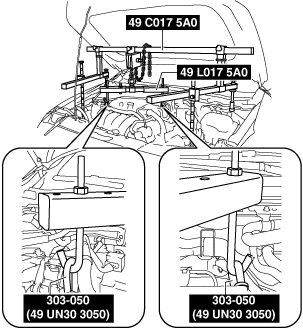

(8)  Install the SST (49 L017 5A0) to the SST (49 UN30 3050) with the hook of the SST (49 L017 5A0) facing outward.

am3zzw00029879

(9)  Adjust the height of the left and right side bars so that they are leveled, then tighten each part of the SST.

(10)  Apply tension to the chain to support the engine and verify that the engine is securely hung.

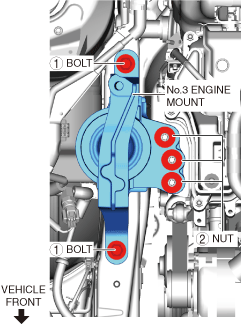

10.  Remove the No.3 engine mount.

Seal rubber removal note

1.  Disconnect the exhaust gas temperature sensor No.3 connector.

ac3wzw00001788

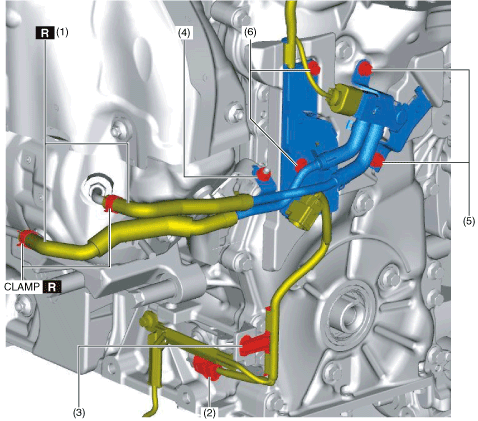

2.  Disconnect or remove the following parts in the order of the numbers shown in the figure.

ac30zw00004952

(1)  Air hoses

(2)  Crankshaft position sensor connector

(3)  Wiring harness clip

(4)  Air pipe stay installation nut

(5)  Exhaust gas pressure sensor No.2 bracket installation bolts

(6)  Wiring harness protector installation bolts

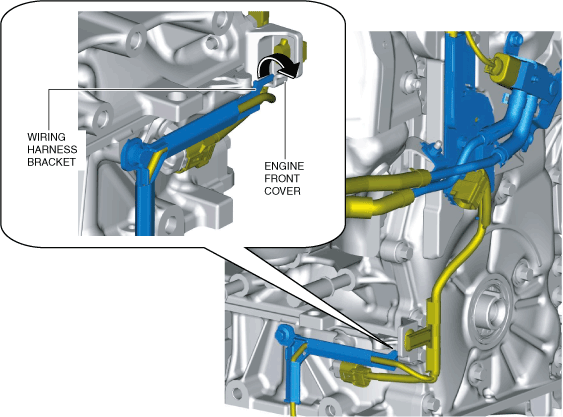

3.  Set the wiring harness bracket shown in the figure aside from the engine front cover.

am3zzw00017246

4.  Set the wiring harness, air hose component, and exhaust gas pressure sensor No.2 on the engine as a single unit.

5.  Remove the seal rubber.

Engine front cover removal note

1.  Remove the engine front cover installation bolt.

2.  Using a screwdriver wrapped in a cloth, peel the silicone sealant away a little at a time, and remove the engine front cover.

Caution

•  Do not apply excessive force to the screwdriver. Otherwise, the engine front cover could be damaged.

•  Be careful not to scratch or damage the seal surface. Otherwise, it could cause oil leakage.

ac3wzw00001790

ac3wzw00001791

Intake camshaft sprocket removal note

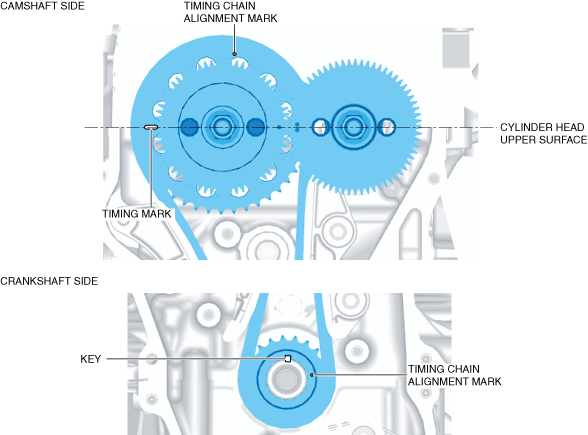

1.  Rotate the crankshaft clockwise to align the timing mark and the key position as shown in the figure, and set cylinder No.1 at top dead center (TDC).

am2zzw00010173

2.  Hold the intake camshaft using a wrench on the cast hexagon, and remove the intake camshaft sprocket installation bolt.

am2zzw00010174

3.  Remove the intake camshaft sprocket.

Timing chain removal note

1.  Loosen the timing chain tensioner using the following procedure:

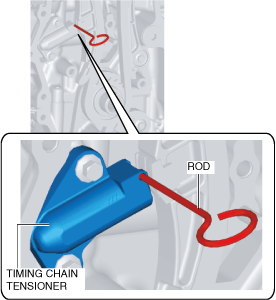

(1)  Insert a metal rod (diameter approx. 3.2 mm {0.13 in}, length approx. 60—70 mm {2.4—2.7 in}) into the hole in the body of the timing chain tensioner.

ac3wzw00001792

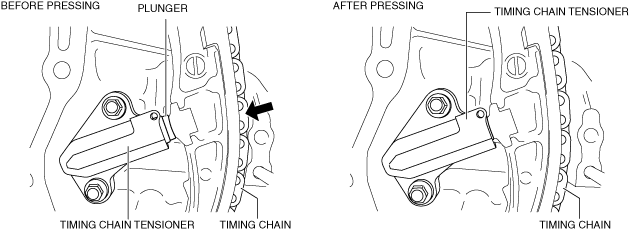

(2)  Press the timing chain in the direction of the arrow and press on the plunger of the timing chain tensioner.

ac3wzw00001943

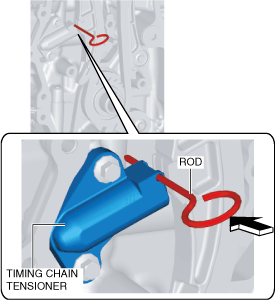

(3)  With the plunger pressed in, further insert the metal rod set in (1) above.

ac3wzw00001793

Note

•  The rod secures the plunger and releases the tension.

(4)  Loosen the power of the hand pressing the plunger and verify that the pressed-in rod does not move.

2.  Remove the timing chain tensioner and timing chain tensioner arm.

3.  Remove the timing chain guide.

4.  Remove the timing chain and crankshaft sprocket as a single unit.

Oil pump driven sprocket removal note

Caution

•  If the oil pump driven sprocket is removed with the oil pump chain tensioner installed, the tensioner could be damaged. Always verify that the oil pump chain tensioner is removed.

1.  Temporarily assemble the crankshaft pulley lock bolt, and lock the oil pump against rotation as shown in the figure.

ac3wzw00001794

2.  Remove the oil pump driven sprocket.

3.  Remove the temporarily assembled crankshaft pulley lock bolt.

Oil pump driven sprocket installation note

1.  Temporarily assemble the crankshaft pulley lock bolt, and lock the oil pump against rotation as shown in the figure.

ac3wzw00001795

2.  Install the oil pump driven sprocket.

3.  Remove the temporarily assembled crankshaft pulley lock bolt.

Oil pump chain tensioner installation note

1.  Temporarily assemble the oil pump chain tensioner.

2.  Verify that the spring of the oil pump chain tensioner is in the hole of the lower cylinder block.

•  If the spring is not in the hole, perform the temporary assembly of the oil pump chain tensioner again.

ac3wzw00001796

3.  Tighten the oil pump chain tensioner installation bolt.

Timing chain installation note

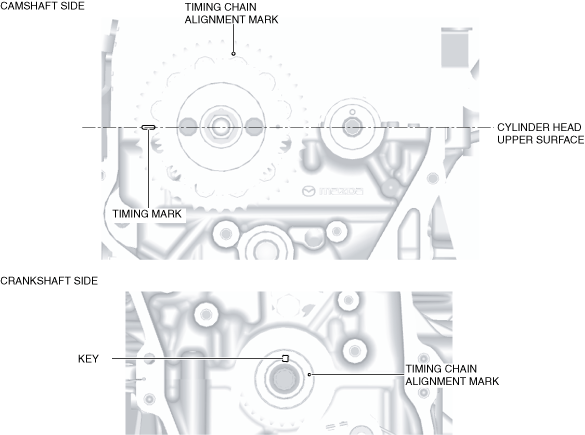

1.  Verify that the timing marks and the key are aligned to the position shown in the figure.

am2zzw00010181

Note

•  If they are not in the positions shown in the figure, rotate the camshaft and crankshaft to set the cylinder No.1 top dead center (TDC).

•  There are two timing chain alignment marks as shown in the figure.

am2zzw00010182

2.  Align the timing chain alignment mark (crankshaft sprocket side) with the crankshaft sprocket alignment mark.

am2zzw00010183

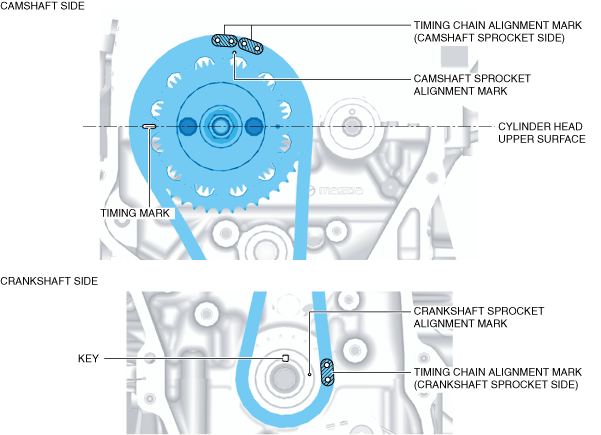

3.  Install the timing chain and crankshaft sprocket as a single unit while aligning the marks on each sprocket and the timing chain as shown in the figure.

am2zzw00010184

4.  Install the timing chain guide.

5.  Install the timing chain tensioner arm.

6.  Install the timing chain tensioner.

7.  After installing the timing chain tensioner, remove the installed rod, and then apply tension to the timing chain.

•  If a new timing chain tensioner is used, remove the installed lock pin.

am2zzw00010185

8.  Verify that there is no looseness in the timing chain, and re-verify that each sprocket is in the specified location.

Intake camshaft sprocket installation note

Caution

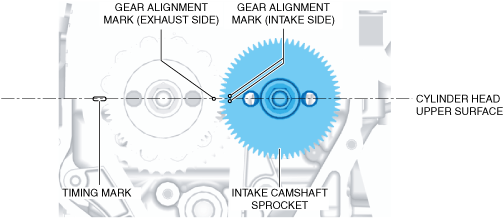

•  Align the gear alignment marks and assemble the sprocket.

ac3wzw00001797

1.  Align the knock pin on the end of the intake camshaft with the knock pin installation hole on the intake camshaft sprocket side, and temporarily assemble the bolt.

Note

•  Finely adjust the knock pin position by rotating the camshaft and align the knock pin with the installation hole.

2.  Hold the intake camshaft using a wrench on the cast hexagon, and tighten the intake camshaft sprocket installation bolt.

am2zzw00010174

3.  Rotate the crankshaft clockwise two turns and inspect the valve timing.

am2zzw00010173

Engine front cover installation note

Note

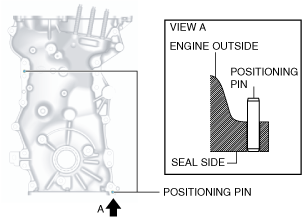

•  For a new engine front cover, the positioning pins in the two locations shown in the figure project to the outside of the engine.

ac3wzw00001798

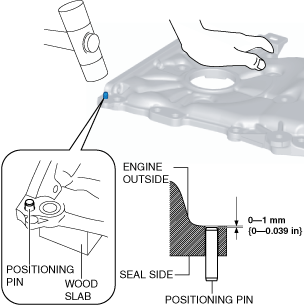

1.  If the engine front cover is newly replaced, tap the positioning pins in the two locations to the seal surface side.

ac3wzw00001799

Caution

•  If a bolt with silicone sealant adhering to it is used, it could result in cracks in the cylinder head and cylinder block.

am2zzw00010189

2.  When reusing the engine front cover installation bolts, remove sealant adhering to the bolts.

Caution

•  If oil, dirt, and sealant remain on the silicone sealant application surface and the step bead, the silicone sealant will not seal which will cause oil leakage.

ac9wzw00006552

3.  Completely clean and remove any oil, dirt, silicone sealant or other foreign matter that may be adhering to the engine front cover, cylinder head, and cylinder block.

4.  Degrease the silicone sealant application surface and the step bead.

Caution

•  Apply the silicon sealant in a single, unbroken line.

•  To prevent silicone sealant from hardening, adhere the engine front cover and the cylinder block firmly within 10 min. after applying silicone sealant. After adhering them, tighten the installation bolts immediately.

•  Do not apply silicone sealant to the step bead.

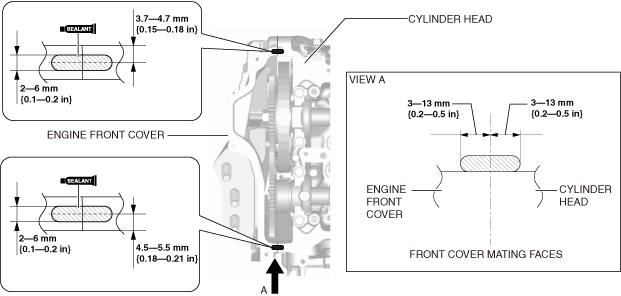

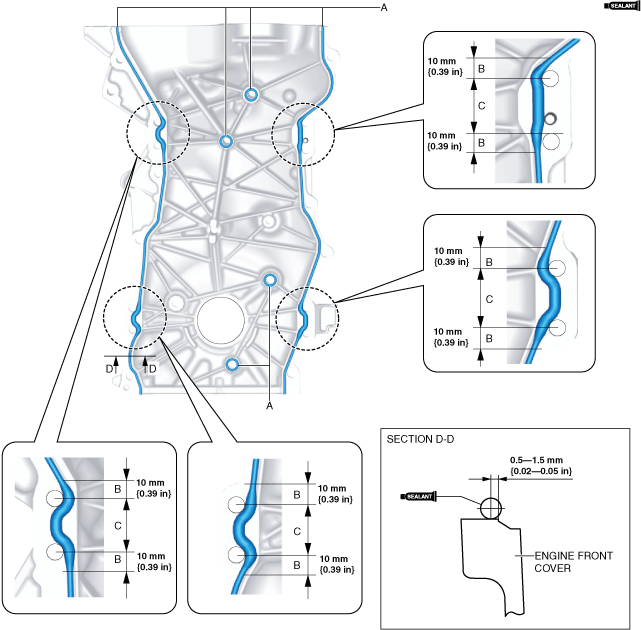

5.  Apply silicone sealant (TB1217D) to the engine front cover according to the directions shown in the figure.

ac3wzw00005357

Caution

•  Apply the silicone sealant so that it goes into the cylinder head gasket.

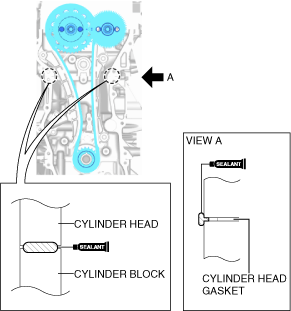

6.  Apply silicone sealant (TB1217D or equivalent) to the areas shown in the figure.

am3zzw00034396

7.  Install the engine front cover to the engine.

Caution

•  For the number 2 and 9 bolts of the tightening order, install the bolts with new washers.

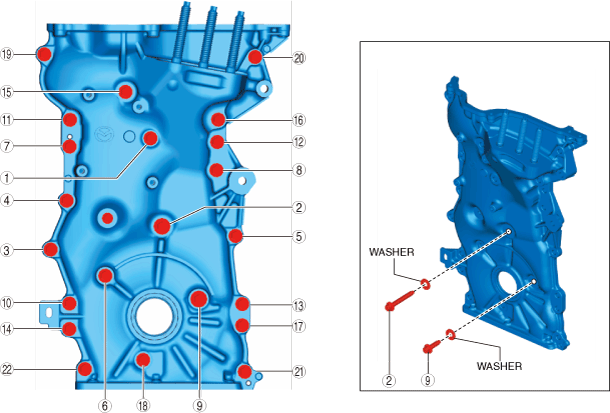

8.  Tighten the engine front cover installation bolts in the order shown in the figure.

am3zzw00034397

Note

•  Install stud bolts because there are no stud bolts installed on a new engine front cover.

•  If the engine front cover is reused, tighten the stud bolts because they may have loosened.

9.  Tighten the engine front cover stud bolts.

am3zzw00034398

Seal rubber installation note

1.  Install the seal rubber.

2.  Return the wiring harness bracket, wiring harness, air hose component and exhaust gas pressure sensor No.2 that were set aside to their original positions.

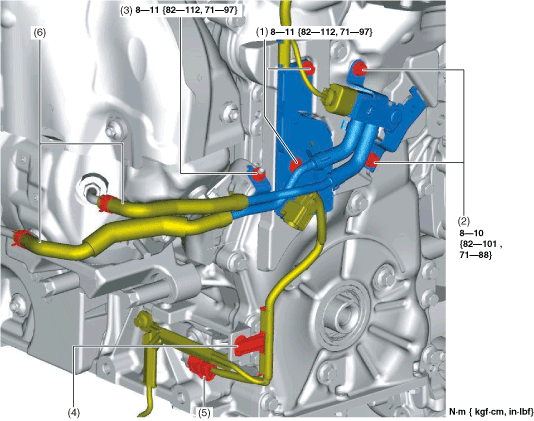

3.  Connect or install the following parts in the order of the numbers shown in the figure.

am3zzw00034399

(1)  Wiring harness protector installation bolts

(2)  Exhaust gas pressure sensor No.2 bracket installation bolts

(3)  Air pipe stay installation nut

(4)  Wiring harness clip

(5)  Crankshaft position sensor connector

(6)  Air hoses

Note

•  The seal rubber can be fixed by installing the wiring harness protector.

4.  Connect the exhaust gas temperature sensor No.3 connector.

ac3wzw00001788

No.3 engine mount installation note

Caution

•  If the No.3 engine mount is deviated from the original position when installing the No.3 engine mount, engine noise or vibration could increase. When installing the No.3 engine mount, align the alignment mark placed during removal and install it to the original position.

1.  Temporarily tighten the No.3 engine mount installation bolts and nuts using the following procedure:

(1)  Align the alignment marks on the body side and No.3 engine mount, and temporarily tighten the bolts shown in the figure.

am3zzw00029880

(2)  Temporarily tighten the nuts shown in the figure while aligning the alignment marks of the No.3 engine mount and nuts.

•  If the alignment marks are deviated, align the alignment marks while slightly moving the engine and temporarily tighten the nuts.

am3zzw00029881

2.  Tighten the No.3 engine mount installation bolts and nuts in the order as shown in the figure.

am3zzw00029882

3.  Remove the SSTs.

4.  Install the rubber bracket.

am3zzw00034393

5.  Install the PCM bracket using the following procedure:

am3zzw00029883

(1)  Temporarily tighten the bolt A.

(2)  Tighten the bolts in the order of B and A.

6.  Install the nut shown in the figure, and then install the cooler hose (LO).

am3zzw00029884

Oil shower pipe installation note

1.  Install the oil shower pipe in the order shown in the figure.

ac3wzw00001808

Cylinder head cover installation note

Caution

•  To assure the sealing performance of the cylinder head cover, be careful of the following:

―  Verify that the cylinder head cover gasket is inserted into the cylinder head cover groove and install the cylinder head cover.

―  Completely clean and remove any oil, dirt, sealant or other foreign matter from the seal surface.

1.  Install the seal rubber on the cylinder head.

•  Verify if the seal rubber has been damaged and if so replace it.

―  The seal rubber can be reused even though the cylinder head cover causes contact marks on the seal rubber. However, if there is damage such as cracks and chips which may cause the seal rubber to tear, replace it.

ac3wzw00001809

2.  Install the oil seal on the cylinder head cover.

•  Verify if the oil seal shown in the figure has been damaged and if so replace it.

ac3wzw00004869

3.  Insert a new cylinder head cover gasket into the cylinder head cover groove.

Caution

•  To prevent silicone sealant from hardening, adhere the cylinder head cover and the cylinder head firmly within 10 min. after applying silicone sealant. After adhering them, tighten the installation bolts immediately.

4.  Apply silicone sealant (TB1217D or equivalent) to the areas shown in the figure.

Engine front side

ac3wzw00004870

Engine rear side

ac3wzw00002955

5.  Install the cylinder head cover.

6.  Tighten the cylinder head cover installation bolts using the following procedure:

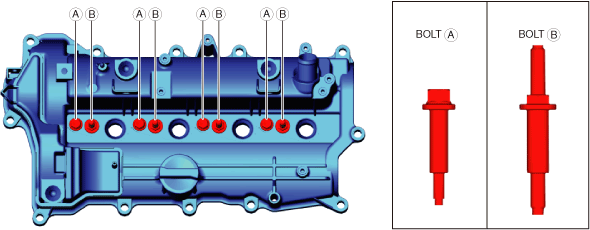

(1)  Tighten the cylinder head cover installation bolts A and B.

ac3wzw00004871

Note

•  The tightening order for installation bolts A and B is optional.

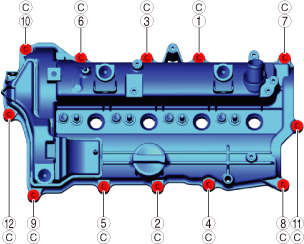

(2)  Tighten cylinder head cover installation bolts C in the order shown in the figure.

ac3wzw00004872

7.  Tighten the bolt shown in the figure.

am3zzw00034390

8.  Install the lower case using the following procedure:

(1)  Return the lower case to its original position.

(2)  Tighten the bolts.

am3zzw00034389

(3)  Install the clip.

ac3wzw00004866

9.  Install the fuel return hose. (See COMMON RAIL REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

10.  Install the turbocharger solenoid valve component using the following procedure:

(1)  Return the turbocharger solenoid valve component to its original position.

(2)  Tighten the bolts.

am3zzw00034388

(3)  Install the clip and connectors.

ac3wzw00004863

11.  Install the clips and connector shown in the figure.

ac3wzw00004862

12.  Install the injection pipe (supply pump side). (See INJECTION PIPE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

13.  Install the fuel feed pipe. (See SUPPLY PUMP REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

14.  Install the vacuum pipe. (See SUPPLY PUMP REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

15.  Connect the breather hose to the cylinder head cover. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
