STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION [(E)]
id0613008017x2
1. Disconnect the negative battery terminal and wait for 1 min or more. (With Mazda M Hybrid) (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)
2. Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

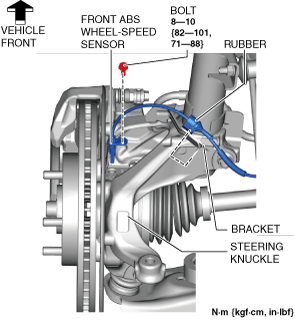

3. Disconnect the rubber from the bracket.
ac30zw00000535
|
4. Disconnect the front ABS wheel-speed sensor wiring harness on the steering knuckle and set it aside so that it does not interfere with the servicing.
5. Remove the tunnel cover. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See MIDDLE PIPE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
6. Remove the following parts.
7. Disconnect the tie-rod end from the steering knuckle. (See TIE-ROD END REPLACEMENT [(E)].)
8. Disconnect the front lower arm ball joint from the steering knuckle. (See FRONT LOWER ARM REMOVAL/INSTALLATION [(E)].)
9. Remove the floor under cover No.1. (With Mazda M Hybrid) (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)
10. Remove the front deflector. (See DEFLECTOR REMOVAL/INSTALLATION.)
11. Remove the front splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION.)
12. Remove the joint cover. (See INTERMEDIATE SHAFT REMOVAL/INSTALLATION [(E)].)
13. Disconnect the intermediate shaft (lower side) from the steering gear and linkage. (See INTERMEDIATE SHAFT REMOVAL/INSTALLATION [(E)].)
14. Disconnect the ground plate. (With Mazda M Hybrid) (See GROUND PLATE DISCONNECTION/CONNECTION.)
15. Remove the front crossmember component. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [(E)].)
16. Remove the hole cover No.1 and hole cover No.2. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [(E)].)
17. Remove the Insulator. (R.H.D.) (See Insulator Installation Note.)
ac30zw00000536
|

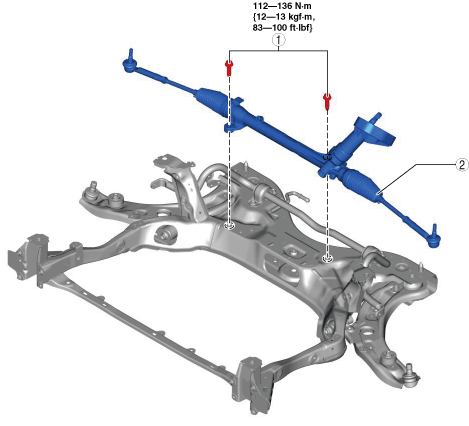

18. Remove in the order shown in the figure.
19. Install in the reverse order of removal.
20. After installation, inspect the front wheel alignment. (See FRONT WHEEL ALIGNMENT [(E)].)
ac30zw00000537
|
1
|
Steering gear and linkage installation bolt
|
2
|
Steering gear and linkage
|

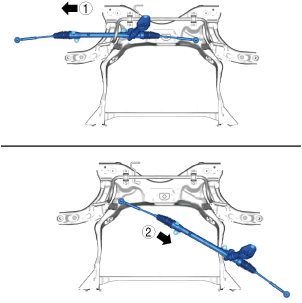

Steering Gear and Linkage Removal Note
1. Move the steering gear and linkage in the direction of the arrow in the order shown in the figure and remove it.
ac30zw00000539
|

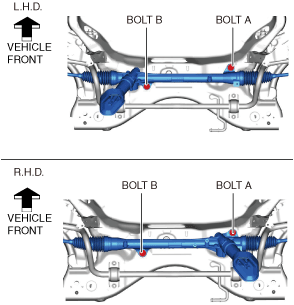

Steering Gear and Linkage Installation Bolt Installation Note
1. Temporarily tighten the steering gear and linkage installation bolts.
ac30zw00000541
|
2. Tighten bolt A.
3. Tighten bolt B.
Insulator Installation Note
1. Temporarily tighten bolt A.
ac30zw00000542
|
2. Tighten bolt B.
3. Tighten bolt A.
