CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (E)]
Home
Warning
• Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module.
Caution
• When replacing the climate control unit, perform the configuration to assure that the system operates correctly.
1. To replace the climate control unit, perform the following procedure.
(1) Connect the M-MDS to the DLC-2.
(2) Switch the ignition ON (engine off) .
(3) Activate the M-MDS and perform the following procedure.
1) Press [Start] to start the vehicle identification.
2) Press the [Toolbox] tab.
3) Press the [Work Support] icon.
4) Press [Configuration].
5) Press [Run] to perform the configuration.
6) Press [CCU].
7) When [Install the new ECU] is displayed, move to the climate control unit replacement procedure.
2. Disconnect the negative battery terminal and wait for 1 min or more . (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)]
3. Remove the following parts:
(1) Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION
(2) Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R]
(3) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION
(4) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION
(5) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION
(6) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION
(7) Cup holder (See CUP HOLDER REMOVAL/INSTALLATION
(8) Side wall (See SIDE WALL REMOVAL/INSTALLATION
(9) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(E)]
(10) Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION
(11) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION
(12) Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION
(13) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION
(14) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)]
(15) Knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]
(16) Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)]

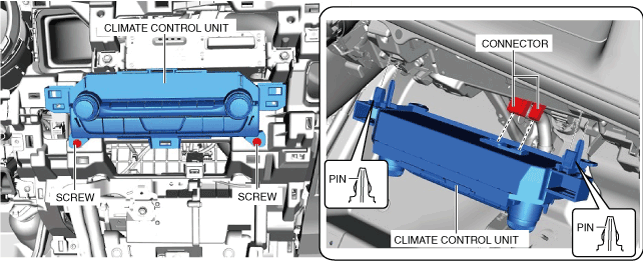

4. Remove the screws.
5. Remove the climate control unit while detaching the pins.
6. Disconnect the connectors.
7. Install in the reverse order of removal.
8. If the climate control unit is replaced, perform the following procedure.
(1) Return to the M-MDS operation and press [Continue].
(2) When the M-MDS processing is completed, press [Next].
(3) When the M-MDS processing is completed, press [Next].
(4) Verify that the following conditions/operations are met/completed, mark the check boxes, and then press [Next].
• Ignition is switched ON (engine off)
• Install battery charger to vehicle
• Battery voltage: 11.6 V or more
• Connect power cable to M-MDS
• Front doors on both sides and liftgate are open
(5) Press [Finish].
(6) Switch the ignition OFF.
(7) Switch the ignition ON (engine off) to complete the global central configuration (GCC) for the climate control unit.
(8) Clear the DTC recorded in the memory. (See CLEARING DTC
