AUDIO PANEL REMOVAL/INSTALLATION
AUDIO PANEL REMOVAL/INSTALLATION
id091700607600
-
Warning
-
1. Disconnect the negative battery terminal and wait for 1 min or more.
2. Remove the following parts:
- (1) Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R].)
-
- (2) Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)
-
- (3) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
-
- (4) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
-
- (5) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
-
- (6) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
-
- (7) Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)
-
- (8) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
-
- (9) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)
-
- (10) Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (11) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (12) Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
-
- (13) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
-
- (14) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)
-
- (15) Driver-side knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)
-
- (16) Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)
-

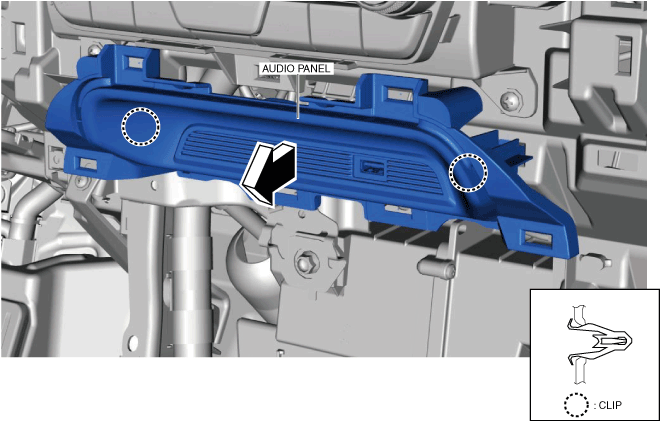

3. Move the audio panel in the direction of the arrow shown in the figure and remove it while detaching the clips.
4. Disconnect the connector. (with USB port)
5. Install in the reverse order of removal.
-
Note
-
