DTC B14F7:17 [VEHICLE CONTROL MODULE (E)]

id1502c50538cb

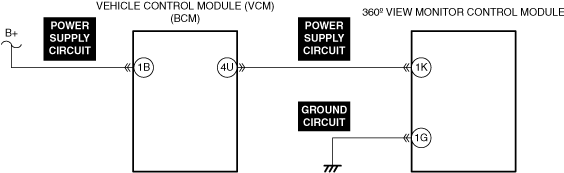

With 360°View Monitor System (Without Mazda M Hybrid)

Outline

System malfunction location

360°view monitor control module high power supply voltage input

Detection condition

•  The vehicle control module (VCM) detects that the 360°view monitor control module power supply circuit voltage was 16 V or more for 15 s.

Fail-safe

(See DTC TABLE [VEHICLE CONTROL MODULE (E)].)

Possible cause

Note

•  The 360°view monitor control module is supplied power via the vehicle control module (VCM).

•  DTCs are stored in the PCM.

•  Battery malfunction

•  Malfunction in generator

•  360°view monitor control module power supply circuit malfunction

―  Power supply circuit malfunction

―  Vehicle control module (VCM) internal malfunction

•  360°view monitor control module malfunction

•  Vehicle control module (VCM) malfunction (built into body control module (BCM))

System malfunction location	360°view monitor control module high power supply voltage input
Detection condition	• The vehicle control module (VCM) detects that the 360°view monitor control module power supply circuit voltage was 16 V or more for 15 s.
Fail-safe	(See DTC TABLE [VEHICLE CONTROL MODULE (E)].)
Possible cause	Note • The 360°view monitor control module is supplied power via the vehicle control module (VCM). • DTCs are stored in the PCM. • Battery malfunction • Malfunction in generator • 360°view monitor control module power supply circuit malfunction ― Power supply circuit malfunction ― Vehicle control module (VCM) internal malfunction • 360°view monitor control module malfunction • Vehicle control module (VCM) malfunction (built into body control module (BCM))

Diagnostic Procedure

Step

Inspection

Results

Action

1

INSPECT VEHICLE CONTROL MODULE (VCM) AND BODY CONTROL MODULE (BCM) FOR MALFUNCTION

•  Perform the DTC inspection for the vehicle control module (VCM) and the body control module (BCM).
(See DTC INSPECTION.)

•  Is a DTC related to an internal malfunction displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [VEHICLE CONTROL MODULE (E)].)

(See DTC TABLE [BODY CONTROL MODULE (BCM) (E)].)

No

Go to the next step.

2

INSPECT 360°VIEW MONITOR CONTROL MODULE FOR MALFUNCTION

•  Perform the DTC inspection for the 360°view monitor control module.
(See DTC INSPECTION.)

•  Is a DTC displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [360°VIEW MONITOR CONTROL MODULE (E)].)

No

Go to the next step.

3

INSPECT FOR PCM-RELATED DTCs

•  Perform the DTC inspection for the PCM.
(See DTC INSPECTION.)

•  Is a DTC displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PCM (SKYACTIV-G (E))].)

(See DTC TABLE [PCM (SKYACTIV-D)].)

No

Go to the next step.

4

INSPECT BATTERY FOR MALFUNCTION

•  Inspect the applicable part.
(See BATTERY INSPECTION [(E)].)

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See BATTERY RECHARGING [(E)].)

(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)

5

INSPECT GENERATOR FOR MALFUNCTION

•  Inspect the applicable part.
(See GENERATOR INSPECTION [SKYACTIV-D 1.8].)

(See GENERATOR INSPECTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

(See GENERATOR INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

(See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

(See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)

6

INSPECT 360°VIEW MONITOR CONTROL MODULE POWER SUPPLY CIRCUIT FOR SHORT TO POWER SUPPLY

•  Inspect the applicable circuit for a short to power supply.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

7

VERIFY VEHICLE CONTROL MODULE (VCM) POWER SUPPLY VOLTAGE

•  Reconnect all the disconnected connectors.

•  Connect the negative battery terminal.

(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

•  Measure the voltage at body control module (BCM) terminal 4U.

•  Is the voltage the standard or more?
(See BODY CONTROL MODULE (BCM) INSPECTION [(E)].)

Yes

Replace the body control module (BCM) and perform the repair completion verification.

(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)

No

Go to the next step.

8

INSPECT 360°VIEW MONITOR CONTROL MODULE FOR MALFUNCTION DEPENDING ON REPEATABILITY

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the vehicle control module (VCM).
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, replace the 360°view monitor control module and perform the repair completion verification.

(See 360°VIEW MONITOR CONTROL MODULE REMOVAL/INSTALLATION [(E)].)

No

Perform the [ACTION FOR NON-REPEATABLE MALFUNCTIONS].

(See TROUBLESHOOTING PROCEDURE [(E)].)

If DTC is displayed

•  Repeat the diagnosis from Step 1.

If DTC is not displayed

•  Go to repair completion verification 2.

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the vehicle control module (VCM).
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the body control module (BCM), then go to the next step.
(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTC IS DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	INSPECT VEHICLE CONTROL MODULE (VCM) AND BODY CONTROL MODULE (BCM) FOR MALFUNCTION • Perform the DTC inspection for the vehicle control module (VCM) and the body control module (BCM). (See DTC INSPECTION.) • Is a DTC related to an internal malfunction displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [VEHICLE CONTROL MODULE (E)].) (See DTC TABLE [BODY CONTROL MODULE (BCM) (E)].)
No	Go to the next step.
2	INSPECT 360°VIEW MONITOR CONTROL MODULE FOR MALFUNCTION • Perform the DTC inspection for the 360°view monitor control module. (See DTC INSPECTION.) • Is a DTC displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [360°VIEW MONITOR CONTROL MODULE (E)].)
No	Go to the next step.
3	INSPECT FOR PCM-RELATED DTCs • Perform the DTC inspection for the PCM. (See DTC INSPECTION.) • Is a DTC displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-G (E))].) (See DTC TABLE [PCM (SKYACTIV-D)].)
No	Go to the next step.
4	INSPECT BATTERY FOR MALFUNCTION • Inspect the applicable part. (See BATTERY INSPECTION [(E)].) • Is the part normal?	Yes	Go to the next step.
No	Repair or replace the malfunctioning location and perform the repair completion verification. (See BATTERY RECHARGING [(E)].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
5	INSPECT GENERATOR FOR MALFUNCTION • Inspect the applicable part. (See GENERATOR INSPECTION [SKYACTIV-D 1.8].) (See GENERATOR INSPECTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See GENERATOR INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].) • Is the part normal?	Yes	Go to the next step.
No	Repair or replace the malfunctioning location and perform the repair completion verification. (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
6	INSPECT 360°VIEW MONITOR CONTROL MODULE POWER SUPPLY CIRCUIT FOR SHORT TO POWER SUPPLY • Inspect the applicable circuit for a short to power supply. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
No	Repair or replace the malfunctioning location and perform the repair completion verification.
7	VERIFY VEHICLE CONTROL MODULE (VCM) POWER SUPPLY VOLTAGE • Reconnect all the disconnected connectors. • Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].) • Measure the voltage at body control module (BCM) terminal 4U. • Is the voltage the standard or more? (See BODY CONTROL MODULE (BCM) INSPECTION [(E)].)	Yes	Replace the body control module (BCM) and perform the repair completion verification. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)
No	Go to the next step.
8	INSPECT 360°VIEW MONITOR CONTROL MODULE FOR MALFUNCTION DEPENDING ON REPEATABILITY • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Perform the DTC inspection for the vehicle control module (VCM). (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, replace the 360°view monitor control module and perform the repair completion verification. (See 360°VIEW MONITOR CONTROL MODULE REMOVAL/INSTALLATION [(E)].)
No	Perform the [ACTION FOR NON-REPEATABLE MALFUNCTIONS]. (See TROUBLESHOOTING PROCEDURE [(E)].) If DTC is displayed • Repeat the diagnosis from Step 1. If DTC is not displayed • Go to repair completion verification 2.
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Perform the DTC inspection for the vehicle control module (VCM). (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, perform the diagnosis from Step 1. • If the malfunction recurs, replace the body control module (BCM), then go to the next step. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)
No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTC IS DISPLAYED • Perform the DTC inspection. (See DTC INSPECTION.) • Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
No	DTC troubleshooting completed.

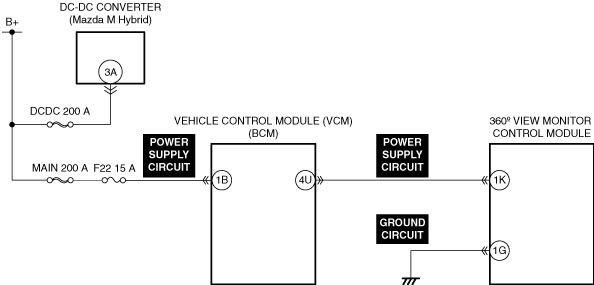

With 360°View Monitor System (With Mazda M Hybrid)

Outline

System malfunction location

360°view monitor control module high power supply voltage input

Detection condition

•  The vehicle control module (VCM) detects that the 360°view monitor control module power supply circuit voltage was 16 V or more for 15 s.

Fail-safe

(See DTC TABLE [VEHICLE CONTROL MODULE (E)].)

Possible cause

Note

•  The 360°view monitor control module is supplied power via the vehicle control module (VCM).

•  DTCs are stored in the following modules.

―  PCM

―  Mazda M Hybrid battery

―  DC-DC converter (Mazda M Hybrid)

―  Integrated starter generator (ISG)

•  Battery malfunction

•  360°view monitor control module power supply circuit malfunction

―  Power supply circuit malfunction

―  Vehicle control module (VCM) internal malfunction

•  360°view monitor control module malfunction

•  Vehicle control module (VCM) malfunction (built into body control module (BCM))

System malfunction location	360°view monitor control module high power supply voltage input
Detection condition	• The vehicle control module (VCM) detects that the 360°view monitor control module power supply circuit voltage was 16 V or more for 15 s.
Fail-safe	(See DTC TABLE [VEHICLE CONTROL MODULE (E)].)
Possible cause	Note • The 360°view monitor control module is supplied power via the vehicle control module (VCM). • DTCs are stored in the following modules. ― PCM ― Mazda M Hybrid battery ― DC-DC converter (Mazda M Hybrid) ― Integrated starter generator (ISG) • Battery malfunction • 360°view monitor control module power supply circuit malfunction ― Power supply circuit malfunction ― Vehicle control module (VCM) internal malfunction • 360°view monitor control module malfunction • Vehicle control module (VCM) malfunction (built into body control module (BCM))

Diagnostic Procedure

Step

Inspection

Results

Action

1

INSPECT VEHICLE CONTROL MODULE (VCM) AND BODY CONTROL MODULE (BCM) FOR MALFUNCTION

•  Perform the DTC inspection for the vehicle control module (VCM) and the body control module (BCM).
(See DTC INSPECTION.)

•  Is a DTC related to an internal malfunction displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [VEHICLE CONTROL MODULE (E)].)

(See DTC TABLE [BODY CONTROL MODULE (BCM) (E)].)

No

Go to the next step.

2

INSPECT 360°VIEW MONITOR CONTROL MODULE FOR MALFUNCTION

•  Perform the DTC inspection for the 360°view monitor control module.
(See DTC INSPECTION.)

•  Is a DTC displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [360°VIEW MONITOR CONTROL MODULE (E)].)

No

Go to the next step.

3

VERIFY DTCs

•  Perform the DTC inspection for the following modules.
(See DTC INSPECTION.)

―  PCM

―  Mazda M Hybrid battery

―  DC-DC converter (Mazda M Hybrid)

―  Integrated starter generator (ISG)

•  Are any DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PCM (SKYACTIV-G (E))].)

(See DTC TABLE [PCM (SKYACTIV-X)].)

(See DTC TABLE [Mazda M Hybrid BATTERY].)

(See DTC TABLE [DC-DC CONVERTER (Mazda M Hybrid)].)

(See DTC TABLE [INTEGRATED STARTER GENERATOR (ISG)].)

No

Go to the next step.

4

INSPECT BATTERY FOR MALFUNCTION

•  Inspect the applicable part.
(See BATTERY INSPECTION [(E)].)

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See BATTERY RECHARGING [(E)].)

(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)

(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

5

INSPECT 360°VIEW MONITOR CONTROL MODULE POWER SUPPLY CIRCUIT FOR SHORT TO POWER SUPPLY

•  Inspect the applicable circuit for a short to power supply.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

6

VERIFY VEHICLE CONTROL MODULE (VCM) POWER SUPPLY VOLTAGE

•  Reconnect all the disconnected connectors.

•  Connect the negative battery terminal.

(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

•  Measure the voltage at body control module (BCM) terminal 4U.

•  Is the voltage the standard or more?
(See BODY CONTROL MODULE (BCM) INSPECTION [(E)].)

Yes

Replace the body control module (BCM) and perform the repair completion verification.

(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)

No

Go to the next step.

7

INSPECT 360°VIEW MONITOR CONTROL MODULE FOR MALFUNCTION DEPENDING ON REPEATABILITY

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the vehicle control module (VCM).
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, replace the 360°view monitor control module and perform the repair completion verification.

(See 360°VIEW MONITOR CONTROL MODULE REMOVAL/INSTALLATION [(E)].)

No

Perform the [ACTION FOR NON-REPEATABLE MALFUNCTIONS].

(See TROUBLESHOOTING PROCEDURE [(E)].)

If DTC is displayed

•  Repeat the diagnosis from Step 1.

If DTC is not displayed

•  Go to repair completion verification 2.

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the vehicle control module (VCM).
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the body control module (BCM), then go to the next step.
(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTC IS DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	INSPECT VEHICLE CONTROL MODULE (VCM) AND BODY CONTROL MODULE (BCM) FOR MALFUNCTION • Perform the DTC inspection for the vehicle control module (VCM) and the body control module (BCM). (See DTC INSPECTION.) • Is a DTC related to an internal malfunction displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [VEHICLE CONTROL MODULE (E)].) (See DTC TABLE [BODY CONTROL MODULE (BCM) (E)].)
No	Go to the next step.
2	INSPECT 360°VIEW MONITOR CONTROL MODULE FOR MALFUNCTION • Perform the DTC inspection for the 360°view monitor control module. (See DTC INSPECTION.) • Is a DTC displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [360°VIEW MONITOR CONTROL MODULE (E)].)
No	Go to the next step.
3	VERIFY DTCs • Perform the DTC inspection for the following modules. (See DTC INSPECTION.) ― PCM ― Mazda M Hybrid battery ― DC-DC converter (Mazda M Hybrid) ― Integrated starter generator (ISG) • Are any DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-G (E))].) (See DTC TABLE [PCM (SKYACTIV-X)].) (See DTC TABLE [Mazda M Hybrid BATTERY].) (See DTC TABLE [DC-DC CONVERTER (Mazda M Hybrid)].) (See DTC TABLE [INTEGRATED STARTER GENERATOR (ISG)].)
No	Go to the next step.
4	INSPECT BATTERY FOR MALFUNCTION • Inspect the applicable part. (See BATTERY INSPECTION [(E)].) • Is the part normal?	Yes	Go to the next step.
No	Repair or replace the malfunctioning location and perform the repair completion verification. (See BATTERY RECHARGING [(E)].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
5	INSPECT 360°VIEW MONITOR CONTROL MODULE POWER SUPPLY CIRCUIT FOR SHORT TO POWER SUPPLY • Inspect the applicable circuit for a short to power supply. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
No	Repair or replace the malfunctioning location and perform the repair completion verification.
6	VERIFY VEHICLE CONTROL MODULE (VCM) POWER SUPPLY VOLTAGE • Reconnect all the disconnected connectors. • Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].) • Measure the voltage at body control module (BCM) terminal 4U. • Is the voltage the standard or more? (See BODY CONTROL MODULE (BCM) INSPECTION [(E)].)	Yes	Replace the body control module (BCM) and perform the repair completion verification. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)
No	Go to the next step.
7	INSPECT 360°VIEW MONITOR CONTROL MODULE FOR MALFUNCTION DEPENDING ON REPEATABILITY • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Perform the DTC inspection for the vehicle control module (VCM). (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, replace the 360°view monitor control module and perform the repair completion verification. (See 360°VIEW MONITOR CONTROL MODULE REMOVAL/INSTALLATION [(E)].)
No	Perform the [ACTION FOR NON-REPEATABLE MALFUNCTIONS]. (See TROUBLESHOOTING PROCEDURE [(E)].) If DTC is displayed • Repeat the diagnosis from Step 1. If DTC is not displayed • Go to repair completion verification 2.
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Perform the DTC inspection for the vehicle control module (VCM). (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, perform the diagnosis from Step 1. • If the malfunction recurs, replace the body control module (BCM), then go to the next step. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)
No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTC IS DISPLAYED • Perform the DTC inspection. (See DTC INSPECTION.) • Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
No	DTC troubleshooting completed.

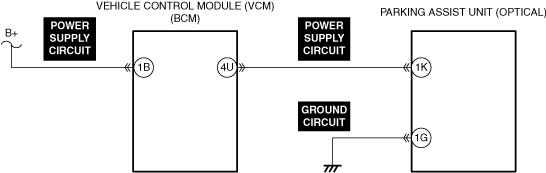

With Parking Assist System (Without Mazda M Hybrid)

Outline

System malfunction location

Parking assist unit (optical) high power supply voltage input

Detection condition

•  The vehicle control module (VCM) detects that the parking assist unit (optical) power supply circuit voltage was 16 V or more for 15 s.

Fail-safe

(See DTC TABLE [VEHICLE CONTROL MODULE (E)].)

Possible cause

Note

•  The parking assist unit (optical) is supplied power via the vehicle control module (VCM).

•  DTCs are stored in the PCM.

•  Battery malfunction

•  Malfunction in generator

•  Parking assist unit (optical) power supply circuit malfunction

―  Power supply circuit malfunction

―  Vehicle control module (VCM) internal malfunction

•  Parking assist unit (optical) malfunction

•  Vehicle control module (VCM) malfunction (built into body control module (BCM))

System malfunction location	Parking assist unit (optical) high power supply voltage input
Detection condition	• The vehicle control module (VCM) detects that the parking assist unit (optical) power supply circuit voltage was 16 V or more for 15 s.
Fail-safe	(See DTC TABLE [VEHICLE CONTROL MODULE (E)].)
Possible cause	Note • The parking assist unit (optical) is supplied power via the vehicle control module (VCM). • DTCs are stored in the PCM. • Battery malfunction • Malfunction in generator • Parking assist unit (optical) power supply circuit malfunction ― Power supply circuit malfunction ― Vehicle control module (VCM) internal malfunction • Parking assist unit (optical) malfunction • Vehicle control module (VCM) malfunction (built into body control module (BCM))

Diagnostic Procedure

Step

Inspection

Results

Action

1

INSPECT VEHICLE CONTROL MODULE (VCM) AND BODY CONTROL MODULE (BCM) FOR MALFUNCTION

•  Perform the DTC inspection for the vehicle control module (VCM) and the body control module (BCM).
(See DTC INSPECTION.)

•  Is a DTC related to an internal malfunction displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [VEHICLE CONTROL MODULE (E)].)

(See DTC TABLE [BODY CONTROL MODULE (BCM) (E)].)

No

Go to the next step.

2

INSPECT PARKING ASSIST UNIT (OPTICAL) FOR MALFUNCTION

•  Perform the DTC inspection for the parking assist unit (optical).
(See DTC INSPECTION.)

•  Is a DTC displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PARKING ASSIST UNIT (OPTICAL) (E)].)

No

Go to the next step.

3

INSPECT FOR PCM-RELATED DTCs

•  Perform the DTC inspection for the PCM.
(See DTC INSPECTION.)

•  Is a DTC displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PCM (SKYACTIV-G (E))].)

(See DTC TABLE [PCM (SKYACTIV-D)].)

No

Go to the next step.

4

INSPECT BATTERY FOR MALFUNCTION

•  Inspect the applicable part.
(See BATTERY INSPECTION [(E)].)

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See BATTERY RECHARGING [(E)].)

(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)

5

INSPECT GENERATOR FOR MALFUNCTION

•  Inspect the applicable part.
(See GENERATOR INSPECTION [SKYACTIV-D 1.8].)

(See GENERATOR INSPECTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

(See GENERATOR INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

(See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

(See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)

6

INSPECT PARKING ASSIST UNIT (OPTICAL) POWER SUPPLY CIRCUIT FOR SHORT TO POWER SUPPLY

•  Inspect the applicable circuit for a short to power supply.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

7

VERIFY VEHICLE CONTROL MODULE (VCM) POWER SUPPLY VOLTAGE

•  Reconnect all the disconnected connectors.

•  Connect the negative battery terminal.

(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

•  Measure the voltage at body control module (BCM) terminal 4U.

•  Is the voltage the standard or more?
(See BODY CONTROL MODULE (BCM) INSPECTION [(E)].)

Yes

Replace the body control module (BCM) and perform the repair completion verification.

(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)

No

Go to the next step.

8

INSPECT PARKING ASSIST UNIT (OPTICAL) FOR MALFUNCTION DEPENDING ON REPEATABILITY

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the vehicle control module (VCM).
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, replace the parking assist unit (optical) and perform the repair completion verification.

(See PARKING ASSIST UNIT (OPTICAL) REMOVAL/INSTALLATION [(E)].)

No

Perform the [ACTION FOR NON-REPEATABLE MALFUNCTIONS].

(See TROUBLESHOOTING PROCEDURE [(E)].)

If DTC is displayed

•  Repeat the diagnosis from Step 1.

If DTC is not displayed

•  Go to repair completion verification 2.

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the vehicle control module (VCM).
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the body control module (BCM), then go to the next step.
(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTC IS DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	INSPECT VEHICLE CONTROL MODULE (VCM) AND BODY CONTROL MODULE (BCM) FOR MALFUNCTION • Perform the DTC inspection for the vehicle control module (VCM) and the body control module (BCM). (See DTC INSPECTION.) • Is a DTC related to an internal malfunction displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [VEHICLE CONTROL MODULE (E)].) (See DTC TABLE [BODY CONTROL MODULE (BCM) (E)].)
No	Go to the next step.
2	INSPECT PARKING ASSIST UNIT (OPTICAL) FOR MALFUNCTION • Perform the DTC inspection for the parking assist unit (optical). (See DTC INSPECTION.) • Is a DTC displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [PARKING ASSIST UNIT (OPTICAL) (E)].)
No	Go to the next step.
3	INSPECT FOR PCM-RELATED DTCs • Perform the DTC inspection for the PCM. (See DTC INSPECTION.) • Is a DTC displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-G (E))].) (See DTC TABLE [PCM (SKYACTIV-D)].)
No	Go to the next step.
4	INSPECT BATTERY FOR MALFUNCTION • Inspect the applicable part. (See BATTERY INSPECTION [(E)].) • Is the part normal?	Yes	Go to the next step.
No	Repair or replace the malfunctioning location and perform the repair completion verification. (See BATTERY RECHARGING [(E)].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
5	INSPECT GENERATOR FOR MALFUNCTION • Inspect the applicable part. (See GENERATOR INSPECTION [SKYACTIV-D 1.8].) (See GENERATOR INSPECTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See GENERATOR INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].) • Is the part normal?	Yes	Go to the next step.
No	Repair or replace the malfunctioning location and perform the repair completion verification. (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
6	INSPECT PARKING ASSIST UNIT (OPTICAL) POWER SUPPLY CIRCUIT FOR SHORT TO POWER SUPPLY • Inspect the applicable circuit for a short to power supply. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
No	Repair or replace the malfunctioning location and perform the repair completion verification.
7	VERIFY VEHICLE CONTROL MODULE (VCM) POWER SUPPLY VOLTAGE • Reconnect all the disconnected connectors. • Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].) • Measure the voltage at body control module (BCM) terminal 4U. • Is the voltage the standard or more? (See BODY CONTROL MODULE (BCM) INSPECTION [(E)].)	Yes	Replace the body control module (BCM) and perform the repair completion verification. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)
No	Go to the next step.
8	INSPECT PARKING ASSIST UNIT (OPTICAL) FOR MALFUNCTION DEPENDING ON REPEATABILITY • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Perform the DTC inspection for the vehicle control module (VCM). (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, replace the parking assist unit (optical) and perform the repair completion verification. (See PARKING ASSIST UNIT (OPTICAL) REMOVAL/INSTALLATION [(E)].)
No	Perform the [ACTION FOR NON-REPEATABLE MALFUNCTIONS]. (See TROUBLESHOOTING PROCEDURE [(E)].) If DTC is displayed • Repeat the diagnosis from Step 1. If DTC is not displayed • Go to repair completion verification 2.
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Perform the DTC inspection for the vehicle control module (VCM). (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, perform the diagnosis from Step 1. • If the malfunction recurs, replace the body control module (BCM), then go to the next step. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)
No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTC IS DISPLAYED • Perform the DTC inspection. (See DTC INSPECTION.) • Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
No	DTC troubleshooting completed.

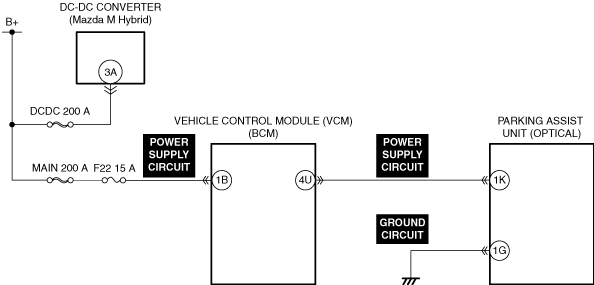

With Parking Assist System (With Mazda M Hybrid)

Outline

System malfunction location

Parking assist unit (optical) high power supply voltage input

Detection condition

•  The vehicle control module (VCM) detects that the parking assist unit (optical) power supply circuit voltage was 16 V or more for 15 s.

Fail-safe

(See DTC TABLE [VEHICLE CONTROL MODULE (E)].)

Possible cause

Note

•  The parking assist unit (optical) is supplied power via the vehicle control module (VCM).

•  DTCs are stored in the following modules.

―  PCM

―  Mazda M Hybrid battery

―  DC-DC converter (Mazda M Hybrid)

―  Integrated starter generator (ISG)

•  Battery malfunction

•  Parking assist unit (optical) power supply circuit malfunction

―  Power supply circuit malfunction

―  Vehicle control module (VCM) internal malfunction

•  Parking assist unit (optical) malfunction

•  Vehicle control module (VCM) malfunction (built into body control module (BCM))

System malfunction location	Parking assist unit (optical) high power supply voltage input
Detection condition	• The vehicle control module (VCM) detects that the parking assist unit (optical) power supply circuit voltage was 16 V or more for 15 s.
Fail-safe	(See DTC TABLE [VEHICLE CONTROL MODULE (E)].)
Possible cause	Note • The parking assist unit (optical) is supplied power via the vehicle control module (VCM). • DTCs are stored in the following modules. ― PCM ― Mazda M Hybrid battery ― DC-DC converter (Mazda M Hybrid) ― Integrated starter generator (ISG) • Battery malfunction • Parking assist unit (optical) power supply circuit malfunction ― Power supply circuit malfunction ― Vehicle control module (VCM) internal malfunction • Parking assist unit (optical) malfunction • Vehicle control module (VCM) malfunction (built into body control module (BCM))

Diagnostic Procedure

Step

Inspection

Results

Action

1

INSPECT VEHICLE CONTROL MODULE (VCM) AND BODY CONTROL MODULE (BCM) FOR MALFUNCTION

•  Perform the DTC inspection for the vehicle control module (VCM) and the body control module (BCM).
(See DTC INSPECTION.)

•  Is a DTC related to an internal malfunction displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [VEHICLE CONTROL MODULE (E)].)

(See DTC TABLE [BODY CONTROL MODULE (BCM) (E)].)

No

Go to the next step.

2

INSPECT PARKING ASSIST UNIT (OPTICAL) FOR MALFUNCTION

•  Perform the DTC inspection for the parking assist unit (optical).
(See DTC INSPECTION.)

•  Is a DTC displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PARKING ASSIST UNIT (OPTICAL) (E)].)

No

Go to the next step.

3

VERIFY DTCs

•  Perform the DTC inspection for the following modules.
(See DTC INSPECTION.)

―  PCM

―  Mazda M Hybrid battery

―  DC-DC converter (Mazda M Hybrid)

―  Integrated starter generator (ISG)

•  Are any DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PCM (SKYACTIV-G (E))].)

(See DTC TABLE [PCM (SKYACTIV-X)].)

(See DTC TABLE [Mazda M Hybrid BATTERY].)

(See DTC TABLE [DC-DC CONVERTER (Mazda M Hybrid)].)

(See DTC TABLE [INTEGRATED STARTER GENERATOR (ISG)].)

No

Go to the next step.

4

INSPECT BATTERY FOR MALFUNCTION

•  Inspect the applicable part.
(See BATTERY INSPECTION [(E)].)

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See BATTERY RECHARGING [(E)].)

(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)

(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

5

INSPECT PARKING ASSIST UNIT (OPTICAL) POWER SUPPLY CIRCUIT FOR SHORT TO POWER SUPPLY

•  Inspect the applicable circuit for a short to power supply.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

6

VERIFY VEHICLE CONTROL MODULE (VCM) POWER SUPPLY VOLTAGE

•  Reconnect all the disconnected connectors.

•  Connect the negative battery terminal.

(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

•  Measure the voltage at body control module (BCM) terminal 4U.

•  Is the voltage the standard or more?
(See BODY CONTROL MODULE (BCM) INSPECTION [(E)].)

Yes

Replace the body control module (BCM) and perform the repair completion verification.

(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)

No

Go to the next step.

7

INSPECT PARKING ASSIST UNIT (OPTICAL) FOR MALFUNCTION DEPENDING ON REPEATABILITY

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the vehicle control module (VCM).
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, replace the parking assist unit (optical) and perform the repair completion verification.

(See PARKING ASSIST UNIT (OPTICAL) REMOVAL/INSTALLATION [(E)].)

No

Perform the [ACTION FOR NON-REPEATABLE MALFUNCTIONS].

(See TROUBLESHOOTING PROCEDURE [(E)].)

If DTC is displayed

•  Repeat the diagnosis from Step 1.

If DTC is not displayed

•  Go to repair completion verification 2.

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the vehicle control module (VCM).
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the body control module (BCM), then go to the next step.
(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTC IS DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.
