REAR HEAT DUCT REMOVAL/INSTALLATION [(E)]

id0711008009x2

Warning

• Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module.

(See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM].)

(See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM].)

(See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

Rear Heat Duct No.1

1. Slide the front seat rearward.

2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3. Remove the following parts:

(1) Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(2) Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R].)

(3) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(4) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(5) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(6) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(7) Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)

(8) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(9) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)

(10) Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(11) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(12) Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(13) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(14) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

(15) Knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(16) Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

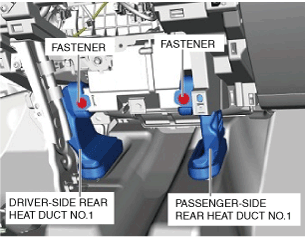

4. Remove the fasteners.

am3zzw00028175

5. Remove the rear heat duct No.1.

6. Install in the reverse order of removal.

Driver-side Rear Heat Duct No.2

1. Slide the front seat rearward.

2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

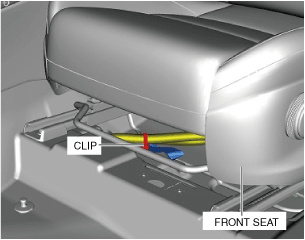

3. Remove the clip.

ac30zw00001858

4. Remove the following parts:

(1) Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(2) Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R].)

(3) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(4) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(5) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(6) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(7) Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)

(8) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(9) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)

(10) Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(11) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(12) Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(13) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(14) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

(15) Knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(16) Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

(17) Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)

(18) Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

(19) Driver-side rear heat duct No.1(See Rear Heat Duct No.1.)

5. Remove the fastener.

am3zzw00028177

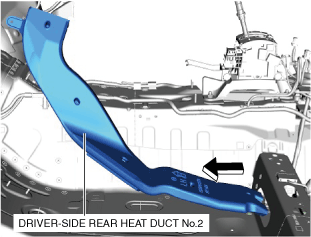

6. Remove the driver-side rear heat duct No.2.

am3zzw00028178

7. Install in the reverse order of removal.

Passenger-side Rear Heat Duct No.2

1. Slide the front seat rearward.

2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

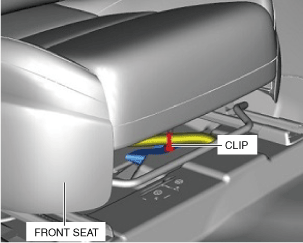

3. Remove the clip.

ac30zw00001859

4. Remove the following parts:

(1) Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(2) Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R].)

(3) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(4) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(5) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(6) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(7) Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)

(8) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(9) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)

(10) Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(11) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(12) Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(13) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(14) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

(15) Knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(16) Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

(17) Passenger-side rear heat duct No.1(See Rear Heat Duct No.1.)

5. Remove the fastener.

am3zzw00028180

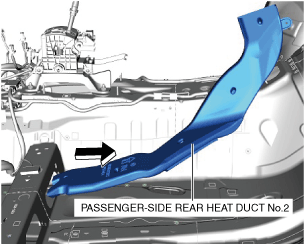

6. Remove the passenger-side rear heat duct No.2.

am3zzw00028181

7. Install in the reverse order of removal.
