THEFT-DETERRENT SIREN REMOVAL/INSTALLATION

id091400630100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(2)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(3)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION [(E)].)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(5)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

3.  Partially peel back the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [(E)].)

4.  Remove the following parts:

(1)  Trunk side insulator (See TRUNK SIDE INSULATOR REMOVAL/INSTALLATION.)

(2)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(3)  Rear over fender (See REAR OVER FENDER REMOVAL/INSTALLATION.)

(4)  Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)

(5)  Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION [(E)].)

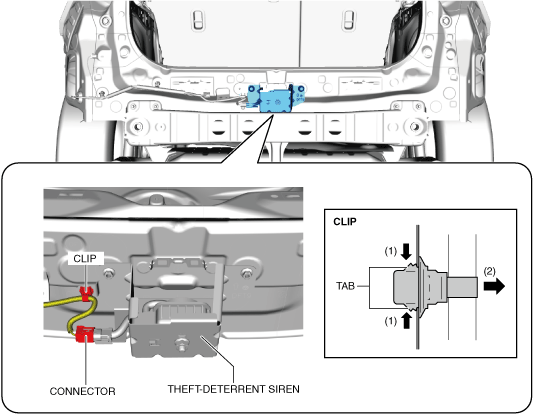

5.  Disconnect the connector.

ac30zw00000892

6.  Remove the clip.

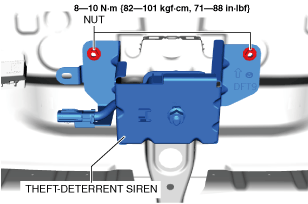

7.  Remove the nuts.

ac30zw00000894

8.  Remove the theft-deterrent siren.

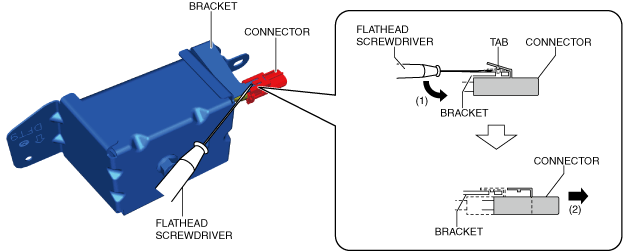

9.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure.

ac30zw00000895

10.  Move the tape-wrapped flathead screwdriver in the direction of arrow (1) shown in the figure to press the connector tab, and pull it in the direction of arrow (2) to detach the connector from the bracket.

11.  Remove the nut.

ac30zw00000896

12.  Remove the bracket.

13.  Disconnect the connector.

ac30zw00000897

14.  Remove the short wiring harness.

15.  Remove the theft-deterrent siren.

16.  Install in the reverse order of removal.

17.  Perform the rear side radar sensor aiming. (with rear side radar sensor) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING.)
