COOLING SYSTEM LOCATION INDEX [SKYACTIV-X 2.0]

Home  id0112hf800100

am3zzw00035965

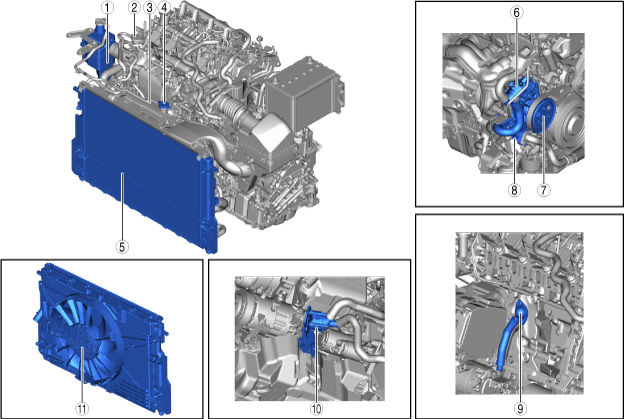

1	Coolant reserve tank (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-X 2.0].) (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
2	Cooling system cap (See COOLING SYSTEM CAP INSPECTION [SKYACTIV-X 2.0].)
3	Water-cooled charge air cooler reserve tank (See WATER-COOLED CHARGE AIR COOLER COOLANT LEVEL INSPECTION [SKYACTIV-X 2.0].) (See WATER-COOLED CHARGE AIR COOLER RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
4	Water-cooled charge air cooler reserve tank cap (See WATER-COOLED CHARGE AIR COOLER RESERVE TANK CAP INSPECTION [SKYACTIV-X 2.0].)
5	Radiator (See COOLING SYSTEM SERVICE WARNINGS [SKYACTIV-X 2.0].) (See ENGINE COOLANT LEVEL INSPECTION [SKYACTIV-X 2.0].) (See ENGINE COOLANT REPLACEMENT [SKYACTIV-X 2.0].) (See WATER-COOLED CHARGE AIR COOLER COOLANT REPLACEMENT [SKYACTIV-X 2.0].) (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-X 2.0].) (See WATER-COOLED CHARGE AIR COOLER COOLANT LEAKAGE INSPECTION [SKYACTIV-X 2.0].) (See RADIATOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
6	Coolant Switching Valve (CSV) (See COOLANT SWITCHING VALVE (CSV) REMOVAL/INSTALLATION [SKYACTIV-X 2.0].) (See COOLANT SWITCHING VALVE (CSV) INSPECTION [SKYACTIV-X 2.0].)
7	Water pump (See WATER PUMP REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
8	Electric Thermostat (See ELECTRIC THERMOSTAT REMOVAL/INSTALLATION [SKYACTIV-X 2.0].) (See ELECTRIC THERMOSTAT HEATER INSPECTION [SKYACTIV-X 2.0].)
9	Thermostat (See THERMOSTAT REMOVAL/INSTALLATION [SKYACTIV-X 2.0].) (See THERMOSTAT INSPECTION [SKYACTIV-X 2.0].)
10	Electric Water Pump (See ELECTRIC WATER PUMP REMOVAL/INSTALLATION [SKYACTIV-X 2.0].) (See ELECTRIC WATER PUMP INSPECTION [SKYACTIV-X 2.0].)
11	Cooling Fan Motor (See COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].) (See COOLING FAN MOTOR INSPECTION [SKYACTIV-X 2.0].)
