FUEL SYSTEM LOCATION INDEX [SKYACTIV-D 1.8]

Home  id0114q9800100

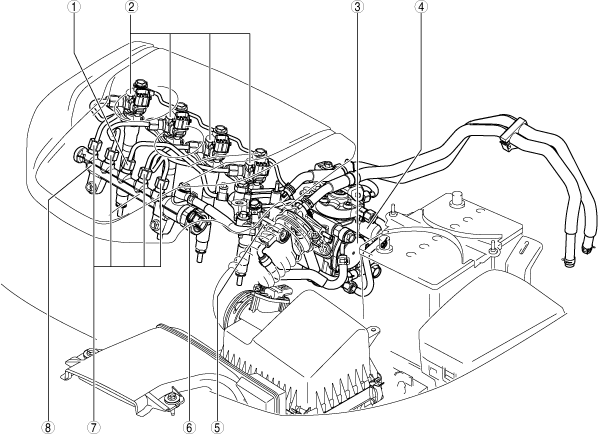

Engine Compartment Side

am3zzw00028747

1	Injection pipe (supply pump side) (See INJECTION PIPE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
2	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See FUEL INJECTOR INSPECTION [SKYACTIV-D 1.8].)
3	Supply pump (See SUPPLY PUMP REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See SUPPLY PUMP INSPECTION [SKYACTIV-D 1.8].)
4	Suction control valve (See SUCTION CONTROL VALVE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See SUCTION CONTROL VALVE INSPECTION [SKYACTIV-D 1.8].)
5	Lower case (See LOWER CASE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
6	Fuel pressure relief valve (See FUEL PRESSURE RELIEF VALVE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See FUEL PRESSURE RELIEF VALVE INSPECTION [SKYACTIV-D 1.8].)
7	Injection pipe (fuel injector side) (See INJECTION PIPE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
8	Common rail (See COMMON RAIL REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See COMMON RAIL INSPECTION [SKYACTIV-D 1.8].)

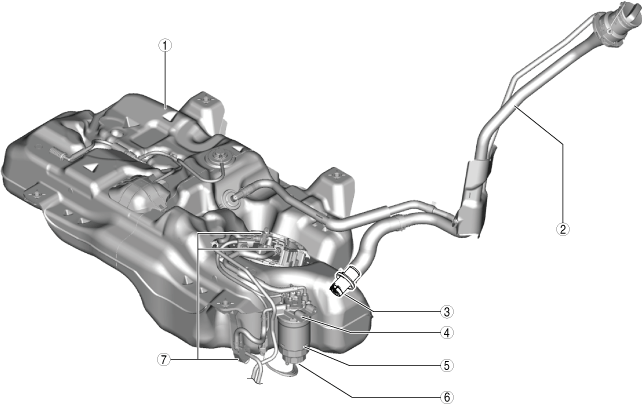

Fuel Tank Side (2WD)

ac30zw00002209

1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See FUEL TANK INSPECTION [SKYACTIV-D 1.8].)
2	Fuel-filler pipe (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
3	Non-return valve (See NON-RETURN VALVE INSPECTION [SKYACTIV-D 1.8].)
4	Fuel warmer (See FUEL FILTER BODY REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See FUEL WARMER INSPECTION [SKYACTIV-D 1.8].)
5	Fuel filter (See FUEL FILTER BODY REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See FUEL FILTER REPLACEMENT [SKYACTIV-D 1.8].) (See FUEL FILTER WATER DRAINING [SKYACTIV-D 1.8].)
6	Sedimentor switch (See SEDIMENTOR SWITCH INSPECTION [SKYACTIV-D 1.8].)
7	Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

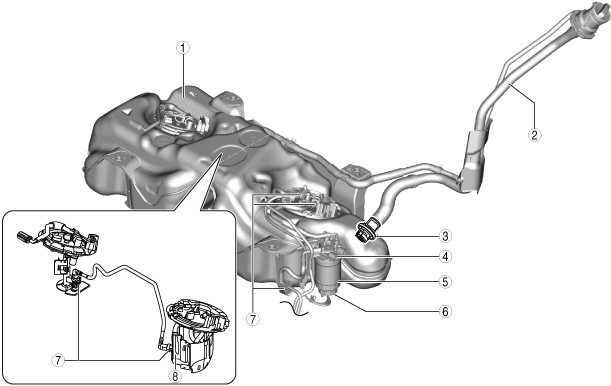

Fuel Tank Side (AWD)

ac30zw00002210

1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See FUEL TANK INSPECTION [SKYACTIV-D 1.8].)
2	Fuel-filler pipe (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
3	Non-return valve (See NON-RETURN VALVE INSPECTION [SKYACTIV-D 1.8].)
4	Fuel warmer (See FUEL FILTER BODY REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See FUEL WARMER INSPECTION [SKYACTIV-D 1.8].)
5	Fuel filter (See FUEL FILTER BODY REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See FUEL FILTER REPLACEMENT [SKYACTIV-D 1.8].) (See FUEL FILTER WATER DRAINING [SKYACTIV-D 1.8].)
6	Sedimentor switch (See SEDIMENTOR SWITCH INSPECTION [SKYACTIV-D 1.8].)
7	Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
8	Jet pump (See JET PUMP INSPECTION [SKYACTIV-D 1.8].)
