INTAKE-AIR SYSTEM LOCATION INDEX [SKYACTIV-X 2.0]

Home  id0113hf801700

am30jw00000091

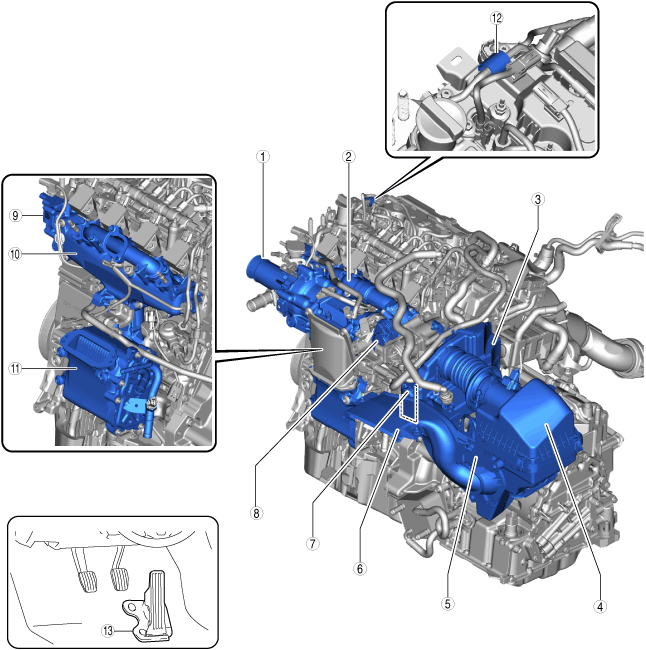

1	Supercharger (See SUPERCHARGER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
2	Air pipe (See AIR PIPE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
3	Resonance chamber (See AIR CLEANER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
4	Air cleaner (See AIR CLEANER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].) (See AIR CLEANER ELEMENT REMOVAL/INSTALLATION [SKYACTIV-X 2.0].) (See AIR CLEANER ELEMENT INSPECTION [SKYACTIV-X 2.0].)
5	Fresh-air duct valve actuator* (See FRESH-AIR DUCT VALVE ACTUATOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
6	Fresh-air duct (See AIR CLEANER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
7	Throttle body (See THROTTLE BODY REMOVAL/INSTALLATION [SKYACTIV-X 2.0].) (See THROTTLE BODY INSPECTION [SKYACTIV-X 2.0].)
8	Air bypass valve (See AIR BYPASS VALVE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
9	Swirl control valve (See SWIRL CONTROL VALVE ACTUATOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].) (See SWIRL CONTROL VALVE ACTUATOR INSPECTION [SKYACTIV-X 2.0].)
10	Intake manifold (See INTAKE MANIFOLD REMOVAL/INSTALLATION [SKYACTIV-X 2.0].) (See INTAKE MANIFOLD VACUUM INSPECTION [SKYACTIV-X 2.0].)
11	Water-cooled charge air cooler (See WATER-COOLED CHARGE AIR COOLER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].) (See WATER-COOLED CHARGE AIR COOLER INSPECTION [SKYACTIV-X 2.0].)
12	Check valve(intake-air system) (See CHECK VALVE (INTAKE-AIR SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-X 2.0].) (See CHECK VALVE (INTAKE-AIR SYSTEM) INSPECTION [SKYACTIV-X 2.0].)
13	Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
