ROOF RAIL REMOVAL/INSTALLATION
ROOF RAIL REMOVAL/INSTALLATION
id091600806200
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)
2. Remove the following parts:
- (1) Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION [(E)].)
-
- (2) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
-
- (3) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
-
- (4) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION [(E)].)
-
- (5) Front seat belt lower anchor (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (6) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
-
- (7) Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
-
- (8) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (9) Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)
-
- (10) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
-
- (11) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
-
- (12) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
-
- (13) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
-
- (14) Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)
-
- (15) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
-
- (16) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)
-
- (17) Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)
-
- (18) Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)
-
- (19) Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION.)
-
- (20) Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION.)
-
- (21) Rear vent duct (See REAR VENT DUCT REMOVAL/INSTALLATION.)
-
- (22) Rear console bracket No.1 (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)
-
- (23) Headliner (See HEADLINER REMOVAL/INSTALLATION [(E)].)
-
- (24) Curtain air bag module (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)
-

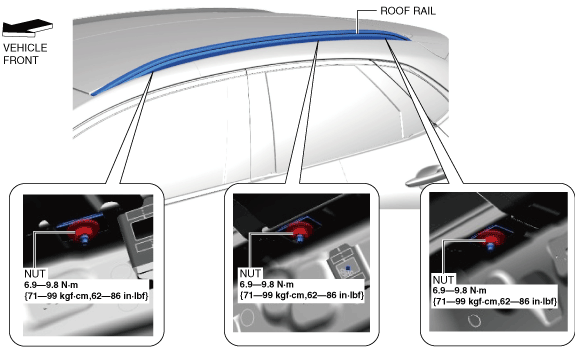

3. Remove the nuts.

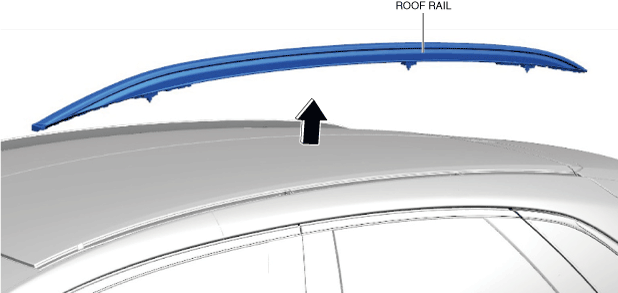

4. Pull up and remove the roof rail in the direction of the arrow shown in the figure.

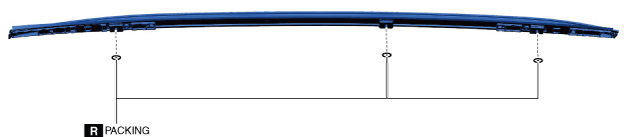

5. Remove the packings from the roof rail.
6. Install in the reverse order of removal.
