HEADLINER REMOVAL/INSTALLATION [(E)]

HEADLINER REMOVAL/INSTALLATION [(E)]


id0917008016x2

1.  Perform the headliner preparation. (See Headliner Preparation.)

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3.  Remove the following parts:

(1)  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION [(E)].)
(2)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
(3)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
(4)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION [(E)].)
(5)  Front seat belt lower anchor (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(6)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(7)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)
(8)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
(9)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(10)  Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R].)
(11)  Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)
(12)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
(13)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
(14)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
(15)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
(16)  Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)
(17)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
(18)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)
(19)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)
(20)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)
(21)  Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION.)
(22)  Rear vent duct No.2 (with rear vent duct) (See REAR VENT DUCT REMOVAL/INSTALLATION.)
(23)  Rear vent duct No.1 (with rear vent duct) (See REAR VENT DUCT REMOVAL/INSTALLATION.)
(24)  Rear console bracket No.1 (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)

4.  Remove the shift lever nuts and set the shift lever aside to the front passenger-side to rotate the headliner in the vehicle. (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R].)

5.  Remove the selector lever nuts and set the selector lever aside to the front passenger-side to rotate the headliner in the vehicle. (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

6.  Remove the bolts.

ac30zw00000227

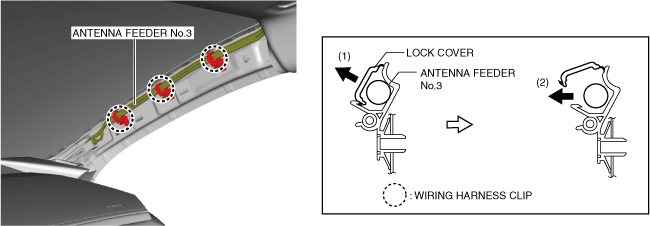

7.  Open the lock covers of the wiring harness clips in the direction of arrow (1) shown in the figure and remove the antenna feeder No.3 in the direction of arrow (2). (with antenna feeder No.3)

ac30zw00004049

8.  Disconnect rear washer hose D.

ac30zw00004050

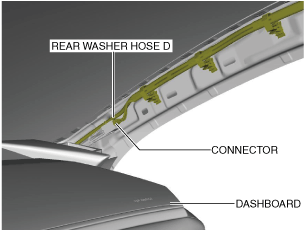

9.  Disconnect the connector. (with antenna feeder No.3)

10.  Pull the rear washer hose D in the direction of the arrow shown in the figure and pull them out. (without antenna feeder No.3)

ac30zw00000229

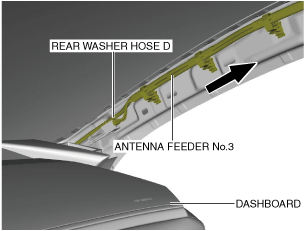

11.  Pull the antenna feeder No.3 and rear washer hose D in the direction of the arrow shown in the figure and pull them out. (with antenna feeder No.3)

ac30zw00004051

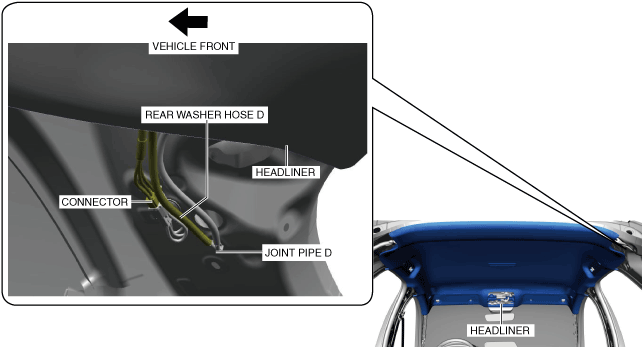

12.  Disconnect rear washer hose D from the joint pipe D.

ac30zw00004052

13.  Disconnect the connector. (with antenna feeder No.3)

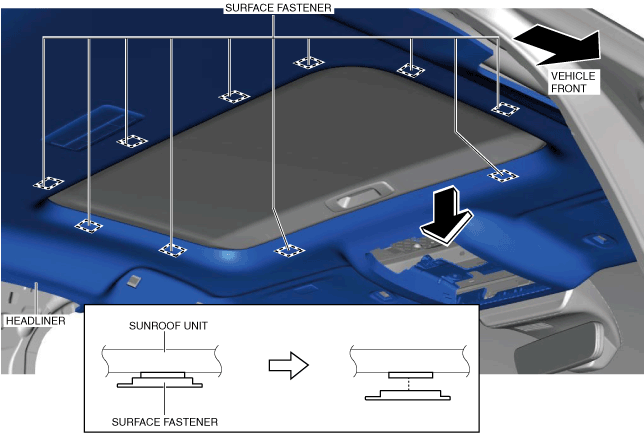

14.  Move the headliner in the direction of the arrow shown in the figure and detach the surface fasteners from the sunroof unit. (with sunroof system)

ac30zw00003404

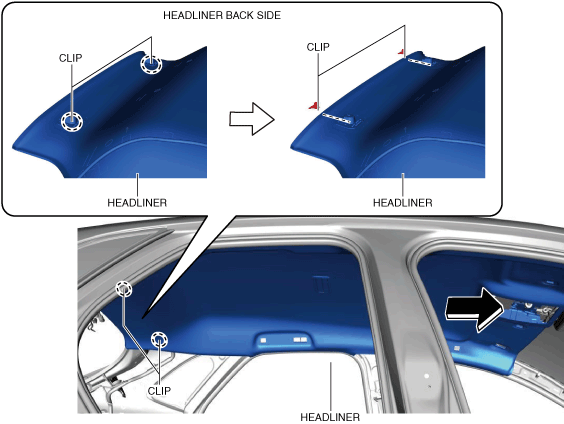

15.  Slide the headliner in the direction of the arrow shown in the figure and remove the clips from the headliner.

ac30zw00000232

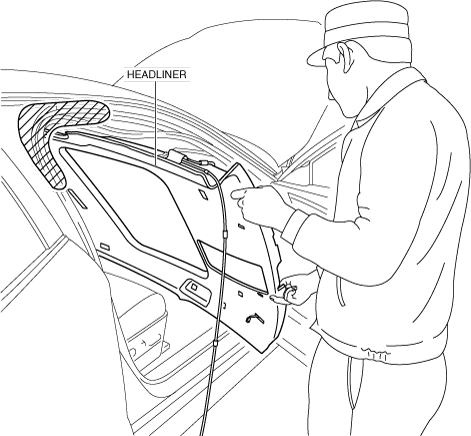

16.  Take the headliner out from the opened passenger-side door.

ac30zw00000233

17.  Remove the clips from the roof panel.

ac30zw00000234

18.  Install the clip removed in Step 13 to the headliner.

ac30zw00000235

19.  Install in the reverse order of removal. (See Headliner Installation Note.)

Note
•  When replacing the headliner, remove the following parts:
―  Rear washer hose D (See REAR WASHER HOSE REMOVAL/INSTALLATION [(E)].)
―  Vanity mirror illumination (with vanity mirror illumination) (See VANITY MIRROR ILLUMINATION REMOVAL/INSTALLATION.)
―  Antenna feeder No.3 (with antenna feeder No.3)


Headliner Preparation

1.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

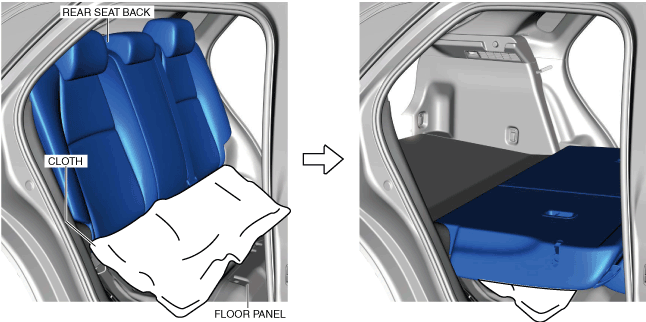

2.  To prevent scratches or damage, insert a cloth between the floor panel and the rear seat back, and fold the rear seat back.

ac30zw00000236

3.  Position the front seat back to the fully reclined position and slide the front seat to its furthest rearward position.

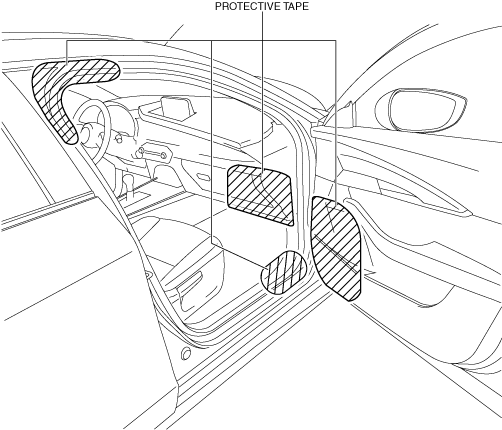

4.  Affix protective tape to the position shown in the figure.

ac30zw00000237


Headliner Installation Note

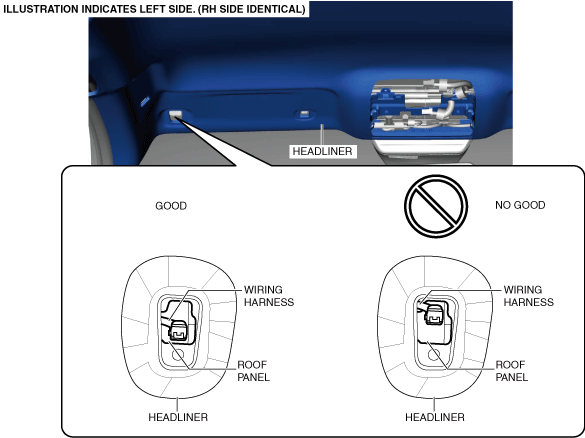

1.  Set the wiring harness to the position shown in the figure so that it does not get caught between the roof panel and the headliner.

ac30zw00000238
