CONVENTIONAL BRAKE SYSTEM LOCATION INDEX [(E)]

Home  id041100800199

Vehicle Front Side [Without Mazda M Hybrid]

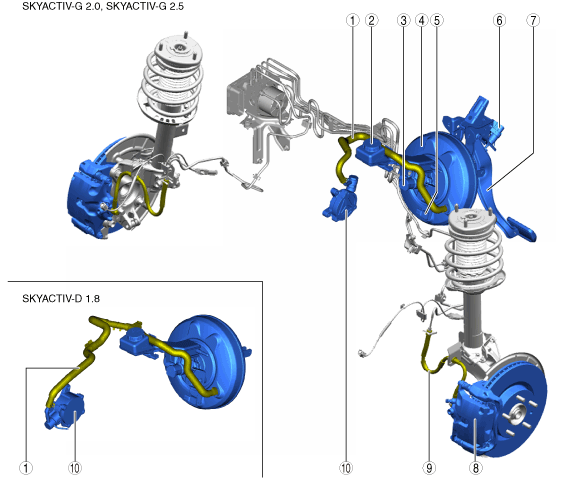

L.H.D.

ac30zw00003461

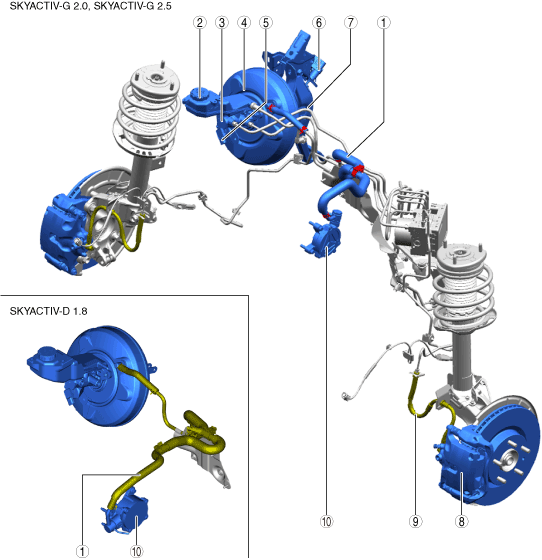

R.H.D.

ac30zw00003462

1	Vacuum line (See VACUUM LINE INSPECTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See VACUUM LINE INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See VACUUM LINE INSPECTION [SKYACTIV-D 1.8].) (See VACUUM HOSE REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See VACUUM HOSE REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See VACUUM HOSE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
2	Brake fluid (See BRAKE FLUID INSPECTION [(E)].) (See BRAKE FLUID AIR BLEEDING [(E)].)
3	Master cylinder (See MASTER CYLINDER REMOVAL/INSTALLATION [R.H.D.].) (See MASTER CYLINDER REMOVAL/INSTALLATION [L.H.D. (E)].) (See BRAKE FLUID LEVEL SENSOR INSPECTION [(E)].)
4	Power brake unit (See POWER BRAKE UNIT INSPECTION [(E)].) (See POWER BRAKE UNIT REMOVAL/INSTALLATION [R.H.D.].) (See POWER BRAKE UNIT REMOVAL/INSTALLATION [L.H.D. (E)].)
5	Power brake unit vacuum sensor (See POWER BRAKE UNIT VACUUM SENSOR REMOVAL/INSTALLATION.)
6	Brake switch (See BRAKE SWITCH INSPECTION.)
7	Brake pedal (See BRAKE PEDAL INSPECTION [(E)].) (See BRAKE PEDAL REMOVAL/INSTALLATION [R.H.D.].) (See BRAKE PEDAL REMOVAL/INSTALLATION [L.H.D. (E)].)
8	Front brake (disc) (See FRONT BRAKE INSPECTION [(E)].) (See FRONT BRAKE DISC REMOVAL/INSTALLATION [(E)].) (See FRONT BRAKE DISC PAD REMOVAL/INSTALLATION [(E)].) (See FRONT BRAKE CALIPER REMOVAL/INSTALLATION [(E)].) (See FRONT BRAKE CALIPER DISASSEMBLY/ASSEMBLY [(E)].) (See FRONT BRAKE MOUNTING SUPPORT REMOVAL/INSTALLATION [(E)].)
9	Front brake hose (See FRONT BRAKE HOSE REMOVAL/INSTALLATION [(E)].)
10	Vacuum pump (See VACUUM PUMP INSPECTION [(E)].) (See VACUUM PUMP REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See VACUUM PUMP REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See VACUUM PUMP REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

Vehicle Front Side [With Mazda M Hybrid]

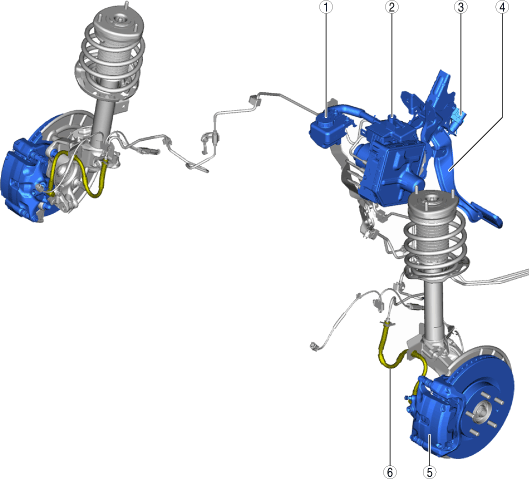

L.H.D.

ac30zw00000106

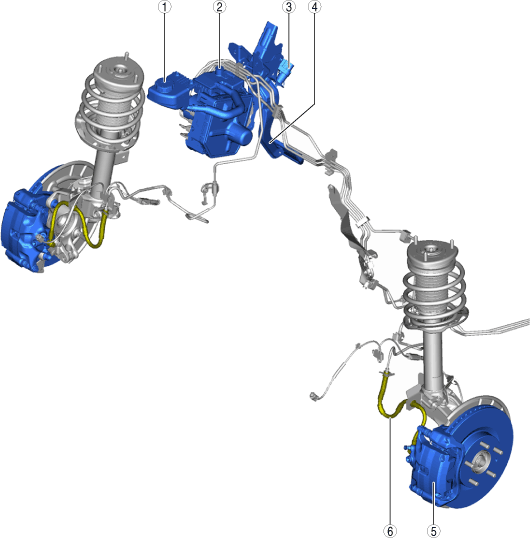

R.H.D.

ac30zw00000107

1	Brake fluid (See BRAKE FLUID INSPECTION [(E)].) (See BRAKE FLUID AIR BLEEDING [(E)].)
2	Brake fluid level sensor (See BRAKE FLUID LEVEL SENSOR INSPECTION [(E)].)
3	Brake switch (See BRAKE SWITCH INSPECTION.)
4	Brake pedal (See BRAKE PEDAL INSPECTION [(E)].) (See BRAKE PEDAL REMOVAL/INSTALLATION [R.H.D.].) (See BRAKE PEDAL REMOVAL/INSTALLATION [L.H.D. (E)].)
5	Front brake (disc) (See FRONT BRAKE INSPECTION [(E)].) (See FRONT BRAKE DISC REMOVAL/INSTALLATION [(E)].) (See FRONT BRAKE DISC PAD REMOVAL/INSTALLATION [(E)].) (See FRONT BRAKE CALIPER REMOVAL/INSTALLATION [(E)].) (See FRONT BRAKE CALIPER DISASSEMBLY/ASSEMBLY [(E)].) (See FRONT BRAKE MOUNTING SUPPORT REMOVAL/INSTALLATION [(E)].)
6	Front brake hose (See FRONT BRAKE HOSE REMOVAL/INSTALLATION [(E)].)

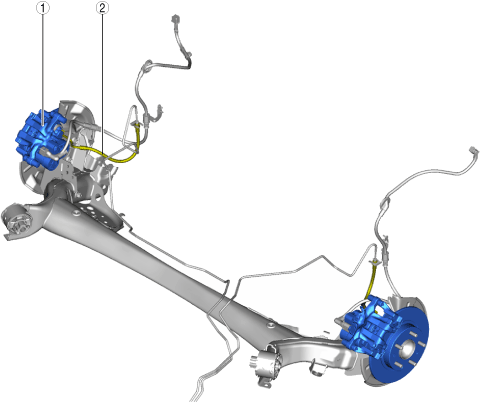

Vehicle Rear Side

ac30zw00000108

1	Rear brake (disc) (See REAR BRAKE INSPECTION [(E)].) (See REAR BRAKE DISC REMOVAL/INSTALLATION [(E)].) (See REAR BRAKE DISC PAD REMOVAL/INSTALLATION [(E)].) (See REAR BRAKE CALIPER REMOVAL/INSTALLATION [(E)].) (See REAR BRAKE CALIPER DISASSEMBLY/ASSEMBLY [(E)].) (See REAR BRAKE MOUNTING SUPPORT REMOVAL/INSTALLATION [(E)].) (See REAR BRAKE HOSE REMOVAL/INSTALLATION [(E)].)
2	Rear brake hose (See REAR BRAKE HOSE REMOVAL/INSTALLATION [(E)].)
