DASHBOARD REMOVAL [(E)]

DASHBOARD REMOVAL [(E)]

id0917008500x2

Replacement part

Bolt

Quantity: 1

Location use: Dashboard

Warning
•  Handling the driver-side air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the driver-side air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

1.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION [(E)].)
(2)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(3)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(4)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(5)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
(6)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
(7)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)
(8)  Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(9)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)
(10)  Driver-side knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)
(11)  Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R].)
(12)  Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)
(13)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
(14)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
(15)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
(16)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
(17)  Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)
(18)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
(19)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)
(20)  Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)
(21)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)
(22)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)
(23)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)
(24)  Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION.)
(25)  Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)
(26)  Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION [(E)].)
(27)  Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION [(E)].)
(28)  Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)
(29)  Steering wheel and column (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)
(30)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)
(31)  Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)
(32)  Center display component (See CENTER DISPLAY REMOVAL/INSTALLATION.)
(33)  Connectivity master unit (CMU) (with CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION.)
(34)  Audio control unit (ACU) (with ACU)
(35)  Display audio (DA) (with DA)
(36)  Audio panel (with audio panel) (See AUDIO PANEL REMOVAL/INSTALLATION.)
(37)  DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL/INSTALLATION.)
(38)  CD player (with CD player) (See CD PLAYER REMOVAL/INSTALLATION.)
(39)  Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (E)].) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER (E)].)
(40)  Dashboard side cover (See DASHBOARD SIDE COVER REMOVAL/INSTALLATION.)
(41)  Rear heat duct No.1 (See REAR HEAT DUCT REMOVAL/INSTALLATION [(E)].)
(42)  Driver-side front heat duct No.2 (See FRONT HEAT DUCT REMOVAL/INSTALLATION [(E)].)
(43)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)
(44)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

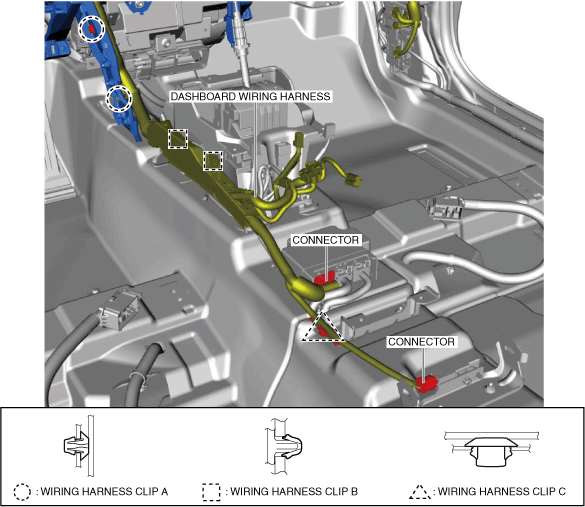

3.  Disconnect the connectors and remove wiring harness clips A, B and C.

ac30zw00004171

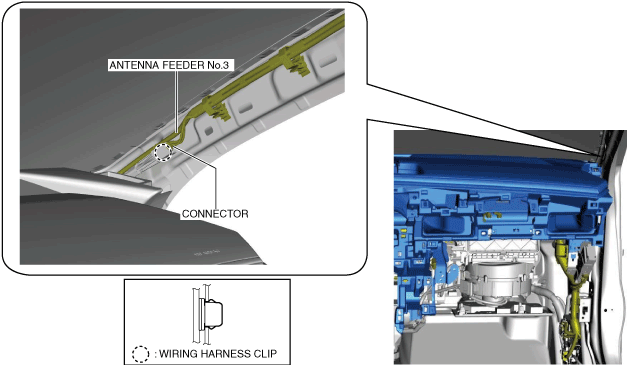

4.  Disconnect the connector and remove wiring harness clip. (with antenna feeder No.3)

ac30zw00004054

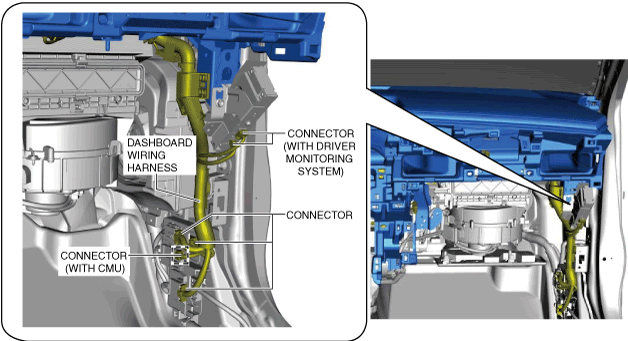

5.  Disconnect the connectors.

ac30zw00004172

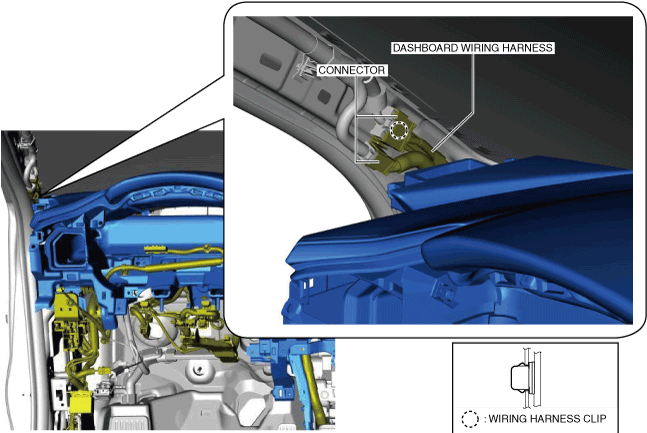

6.  Disconnect the connectors and remove wiring harness clip.

ac30zw00000307

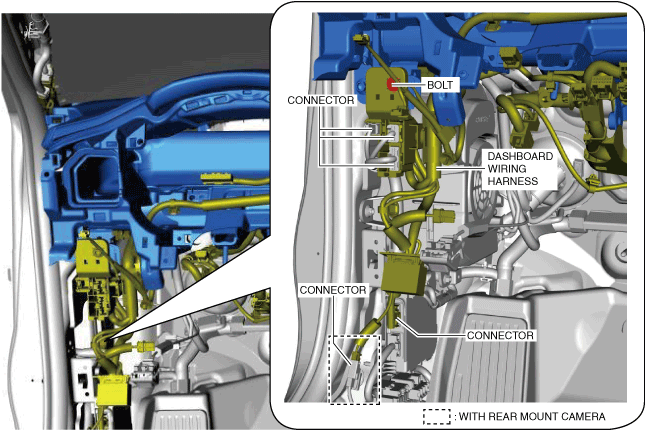

7.  Remove the bolt.

ac30zw00000308

8.  Disconnect the connectors.

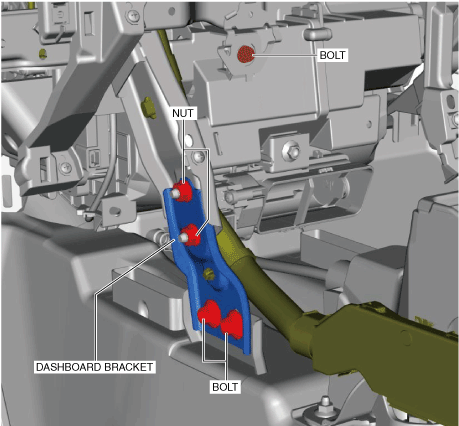

9.  Remove the bolts and nuts shown in the figure.

ac30zw00000309

10.  Remove the dashboard bracket.

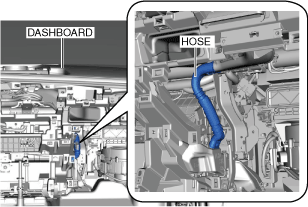

11.  Remove the hose.

ac30zw00000310

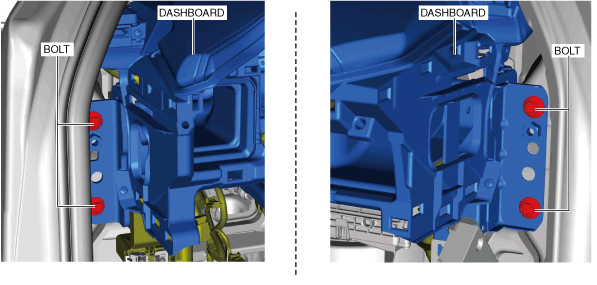

12.  Remove the bolts.

ac30zw00000311

13.  To prevent scratches or damage, affix protective tape to the position shown in the figure of the windshield.

ac30zw00002437

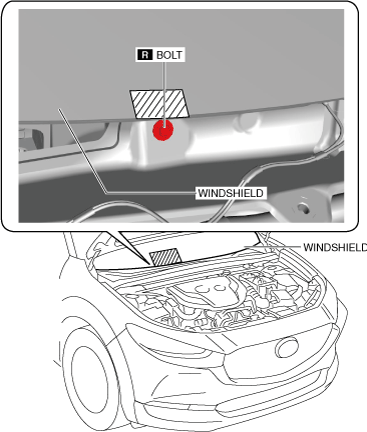

14.  Remove the bolt.

ac30zw00002438

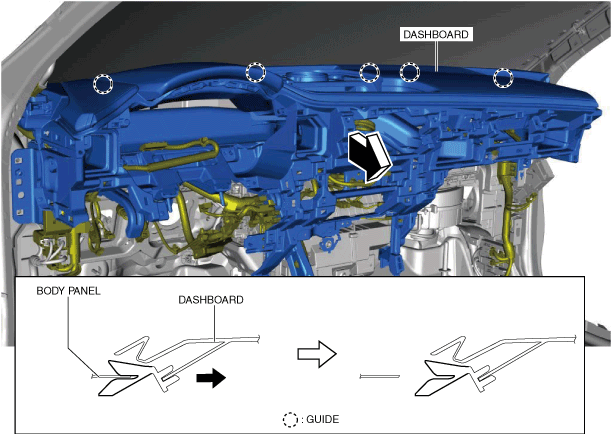

15.  Move the dashboard in the direction of the arrow shown in the figure, then remove the guides.

ac30zw00002922

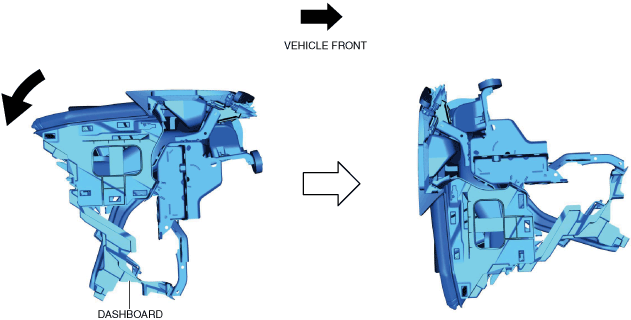

16.  Rotate the dashboard in the direction shown in the figure.

ac30zw00000315

17.  Take the dashboard off from the front driver-side door or front passenger-side door opening.
