FRONT HEAT DUCT REMOVAL/INSTALLATION [(E)]
Home
Warning
• Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module.
1. Disconnect the negative battery terminal and wait for 1 min or more . (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)]
2. Remove the following parts:
(1) Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION
(2) Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R]
(3) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION
(4) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION
(5) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION
(6) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION
(7) Cup holder (See CUP HOLDER REMOVAL/INSTALLATION
(8) Side wall (See SIDE WALL REMOVAL/INSTALLATION
(9) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(E)]
(10) Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION
(11) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION
(12) Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION
(13) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION
(14) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)]
(15) Knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]
(16) Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)]
(17) Driver-side front heat duct No.2 (See Driver-side front heat duct No.2
(18) Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM] DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM] DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]
(19) Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)]
(20) Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION
(21) Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION
(22) Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]
(23) Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION [(E)]
(24) Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION [(E)]
(25) Steering column component (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)]

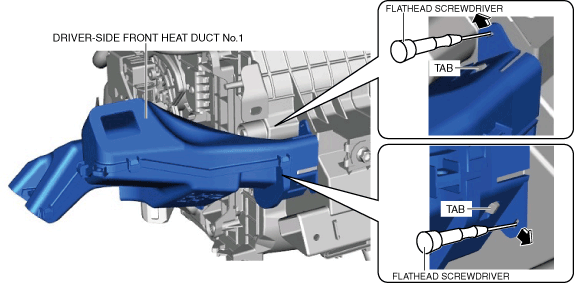

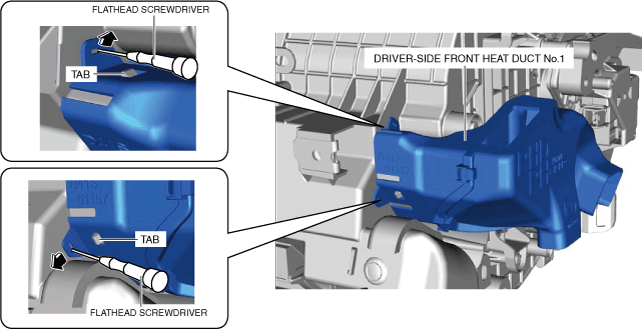

3. Insert a flathead screwdriver in the position shown in the figure, lift it up in the direction of the arrows.
4. Detach the tabs and remove the driver-side front heat duct No.1.
5. Install in the reverse order of removal.
1. Disconnect the negative battery terminal and wait for 1 min or more . (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)]
2. Remove the following parts:
(1) Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION
(2) Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R]
(3) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION
(4) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION
(5) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION
(6) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION
(7) Cup holder (See CUP HOLDER REMOVAL/INSTALLATION
(8) Side wall (See SIDE WALL REMOVAL/INSTALLATION
(9) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(E)]
(10) Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION
(11) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION
(12) Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION
(13) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION
(14) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)]
(15) Knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]
(16) Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)]

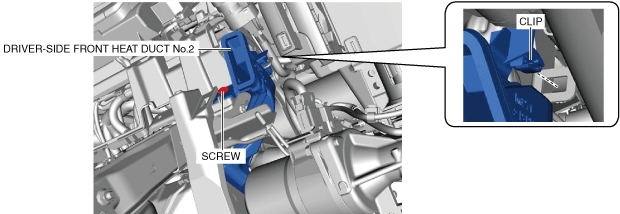

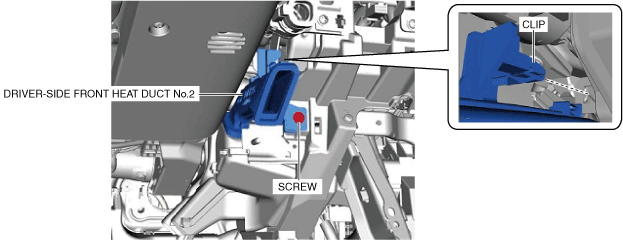

3. Remove the screw.
4. Remove the driver-side front heat duct No.2 while detaching the clip.
5. Install in the reverse order of removal.
1. Disconnect the negative battery terminal and wait for 1 min or more . (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)]
2. Remove the following parts:
(1) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION [(E)]
(2) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION
(3) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION
(4) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION
(5) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION
(6) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION
(7) Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)]
(8) Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION
(9) Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R]
(10) Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION
(11) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION
(12) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION
(13) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION
(14) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION
(15) Cup holder (See CUP HOLDER REMOVAL/INSTALLATION
(16) Side wall (See SIDE WALL REMOVAL/INSTALLATION
(17) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(E)]
(18) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)]
(19) Knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]
(20) Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)]
(21) Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM] DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM] DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]
(22) Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)]
(23) Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION
(24) Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION
(25) Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]
(26) Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION [(E)]
(27) Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION [(E)]
(28) Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)]
(29) Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)]
(30) Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION
(31) Center speaker grill (See SPEAKER GRILLE REMOVAL/INSTALLATION
(32) Center display component (See CENTER DISPLAY REMOVAL/INSTALLATION
(33) Connectivity master unit (CMU) (with CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION
(34) Audio control unit (ACU) (with ACU)
(35) Display audio (DA) (with DA)
(36) Audio panel (with audio panel) (See AUDIO PANEL REMOVAL/INSTALLATION
(37) DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL/INSTALLATION
(38) CD player (with CD player) (See CD PLAYER REMOVAL/INSTALLATION
(39) Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (E)] CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER (E)]
(40) Dashboard side cover (See DASHBOARD SIDE COVER REMOVAL/INSTALLATION
(41) Rear heat duct No.1 (See REAR HEAT DUCT REMOVAL/INSTALLATION [(E)]
(42) Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION
(43) Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION
(44) Dashboard (See DASHBOARD REMOVAL [(E)] DASHBOARD INSTALLATION [(E)]

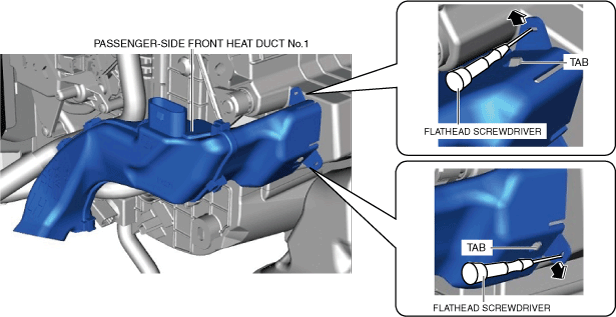

3. Insert a flathead screwdriver in the position shown in the figure, lift it up in the direction of the arrows.
4. Detach the tabs and remove the passenger-side front heat duct No.1.
5. Install in the reverse order of removal.
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)]
2. Remove the following parts:
(1) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION
(2) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION
(3) Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION
(4) Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION
(5) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION
(6) Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)]

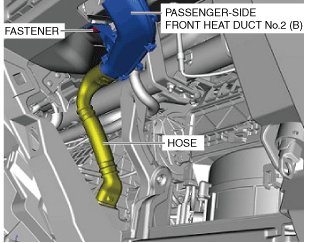

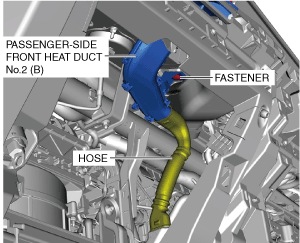

3. Remove the hose.
4. Remove the fastener.

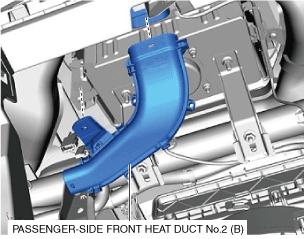

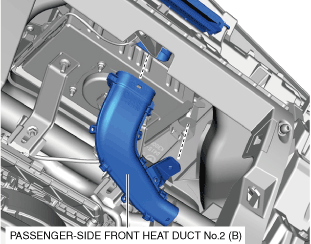

5. Remove the passenger-side front heat duct No.2 (B).

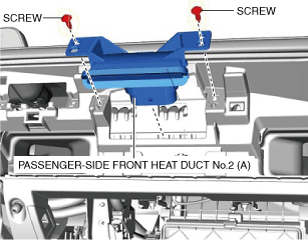

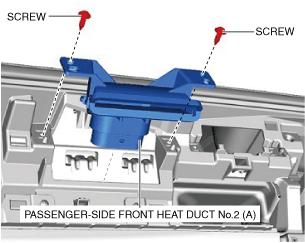

6. Remove the screws.
7. Remove the passenger-side front heat duct No.2 (A).
8. Install in the reverse order of removal.
Warning
• Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module.
1. Disconnect the negative battery terminal and wait for 1 min or more . (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)]
2. Remove the following parts:
(1) Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION
(2) Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R]
(3) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION
(4) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION
(5) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION
(6) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION
(7) Cup holder (See CUP HOLDER REMOVAL/INSTALLATION
(8) Side wall (See SIDE WALL REMOVAL/INSTALLATION
(9) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(E)]
(10) Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION
(11) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION
(12) Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION
(13) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION
(14) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)]
(15) Knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]
(16) Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)]
(17) Driver-side front heat duct No.2 (See Driver-side front heat duct No.2
(18) Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM] DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM] DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]
(19) Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)]
(20) Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION
(21) Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION
(22) Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]
(23) Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION [(E)]
(24) Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION [(E)]
(25) Steering column component (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)]
3. Insert a flathead screwdriver in the position shown in the figure, lift it up in the direction of the arrows.
4. Detach the tabs and remove the driver-side front heat duct No.1.
5. Install in the reverse order of removal.
1. Disconnect the negative battery terminal and wait for 1 min or more . (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)]
2. Remove the following parts:
(1) Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION
(2) Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R]
(3) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION
(4) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION
(5) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION
(6) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION
(7) Cup holder (See CUP HOLDER REMOVAL/INSTALLATION
(8) Side wall (See SIDE WALL REMOVAL/INSTALLATION
(9) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(E)]
(10) Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION
(11) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION
(12) Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION
(13) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION
(14) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)]
(15) Knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]
(16) Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)]
3. Remove the screw.
4. Remove the driver-side front heat duct No.2 while detaching the clip.
5. Install in the reverse order of removal.
1. Disconnect the negative battery terminal and wait for 1 min or more . (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)]
2. Remove the following parts:
(1) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION [(E)]
(2) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION
(3) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION
(4) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION
(5) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION
(6) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION
(7) Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)]
(8) Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION
(9) Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R]
(10) Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION
(11) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION
(12) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION
(13) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION
(14) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION
(15) Cup holder (See CUP HOLDER REMOVAL/INSTALLATION
(16) Side wall (See SIDE WALL REMOVAL/INSTALLATION
(17) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(E)]
(18) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)]
(19) Knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]
(20) Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)]
(21) Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM] DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM] DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]
(22) Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)]
(23) Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION
(24) Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION
(25) Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]
(26) Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION [(E)]
(27) Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION [(E)]
(28) Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)]
(29) Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)]
(30) Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION
(31) Center speaker grill (See SPEAKER GRILLE REMOVAL/INSTALLATION
(32) Center display component (See CENTER DISPLAY REMOVAL/INSTALLATION
(33) Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION
(34) Audio panel (with audio panel) (See AUDIO PANEL REMOVAL/INSTALLATION
(35) DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL/INSTALLATION
(36) CD player (with CD player) (See CD PLAYER REMOVAL/INSTALLATION
(37) Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (E)] CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER (E)]
(38) Dashboard side cover (See DASHBOARD SIDE COVER REMOVAL/INSTALLATION
(39) Rear heat duct No.1 (See REAR HEAT DUCT REMOVAL/INSTALLATION [(E)]
(40) Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION
(41) Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION
(42) Dashboard (See DASHBOARD REMOVAL [(E)] DASHBOARD INSTALLATION [(E)]
3. Insert a flathead screwdriver in the position shown in the figure, lift it up in the direction of the arrows.
4. Detach the tabs and remove the passenger-side front heat duct No.1.
5. Install in the reverse order of removal.
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)]
2. Remove the following parts:
(1) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION
(2) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION
(3) Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION
(4) Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION
(5) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION
(6) Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)]
3. Remove the hose.
4. Remove the fastener.
5. Remove the passenger-side front heat duct No.2 (B).
6. Remove the screws.
7. Remove the passenger-side front heat duct No.2 (A).
8. Install in the reverse order of removal.
