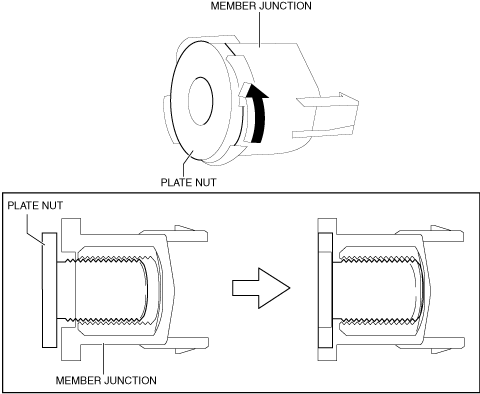

1. Rotate the plate nuts by hand in the direction of the arrow shown in the figure until they are seated.
Caution
• After removing the dashboard, the plate nuts of the member junctions will have lifted. If the dashboard is removed with the plate nuts lifted, the plate nuts may contact the vehicle body, causing a dent or damage to the coating film, and the dashboard installation will be difficult. Before inserting the dashboard into the cabin, adjust the plate nuts of the member junctions.
• If the plate nuts are tightened completely when installing bolts, the plate nuts may not move resulting in damage to the member junction tab and the vehicle body. After seating the plate nuts, verify that they can be rotated by hand.
Note
• If the plate nuts cannot be rotated by hand, loosen the plate nuts using a hexagonal wrench.
am3zzw00029193
2. Verify that the member junction tabs are engaged with the dashboard.
Caution
• If the member junction tabs become disengaged from the dashboard when inserting the dashboard into the cabin, the member junction could be damaged. Before inserting the dashboard into the cabin, verify that the member junction tabs are engaged with the dashboard.
ac30zw00000316

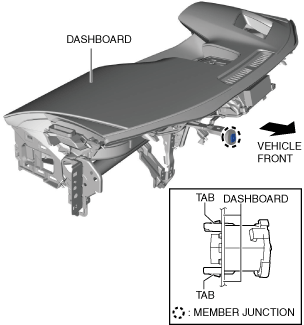

3. Insert the dashboard from the front driver-side door or front passenger-side door opening.

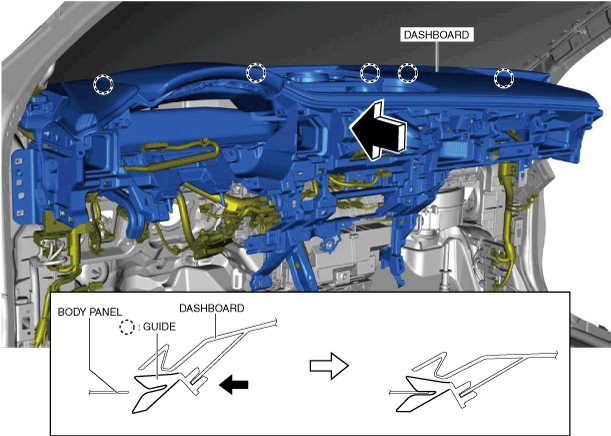

4. Move the dashboard in the direction of the arrow shown in the figure, align it with the guides on the body panel, and set it.
ac30zw00002923

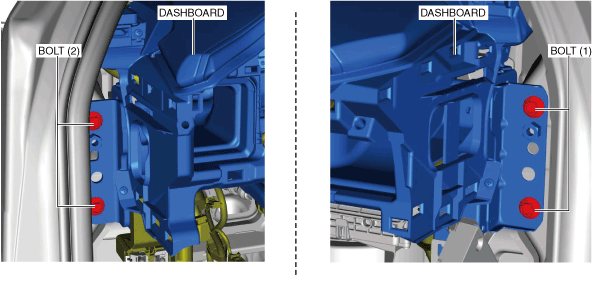

5. Tighten the bolts (1) temporarily.
ac30zw00000318
6. Tighten the bolts (2) temporarily.
7. Tighten the bolt temporarily.
Caution
• If the bolts are reused, the plate nuts of the member junctions may not move causing damage to the member junction tabs and the vehicle body. Always replace the bolts with new ones.
ac30zw00002439

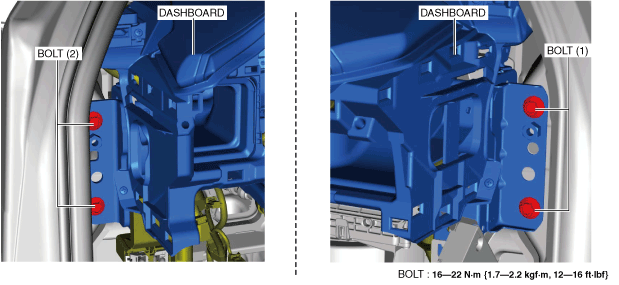

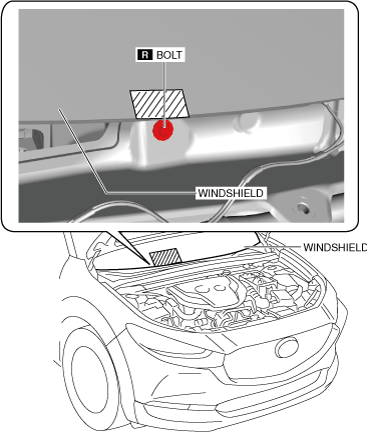

8. Install the bolt (1).
ac30zw00000320
9. Install the bolt (2).

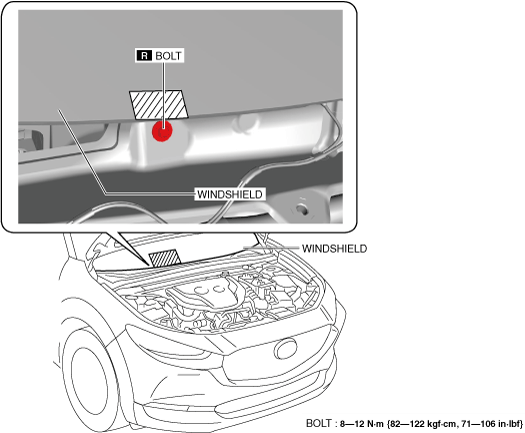

10. Install the bolt.
ac30zw00000321
11. Install the hose.
ac30zw00000322

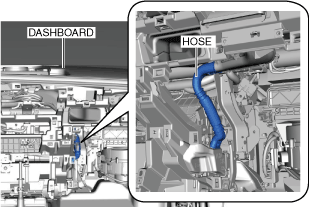

12. Install the dashboard bracket.
ac30zw00002924

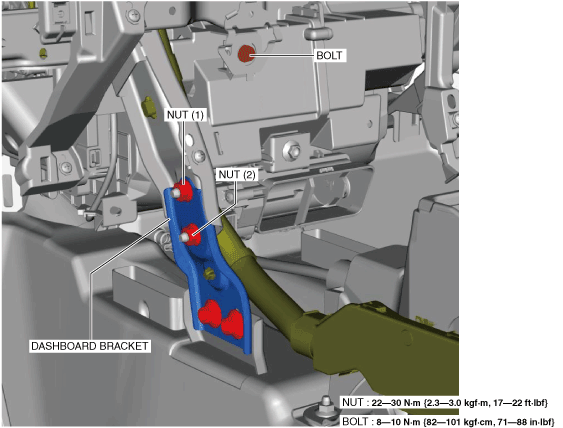

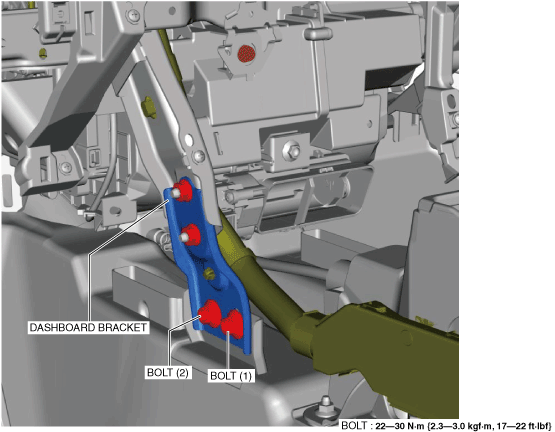

13. Install the bolt (1).
14. Install the bolt (2).
15. Install the nut (1).
ac30zw00000324
16. Install the nut (2).
17. Install the bolt.
18. Connect the connectors.
ac30zw00000325

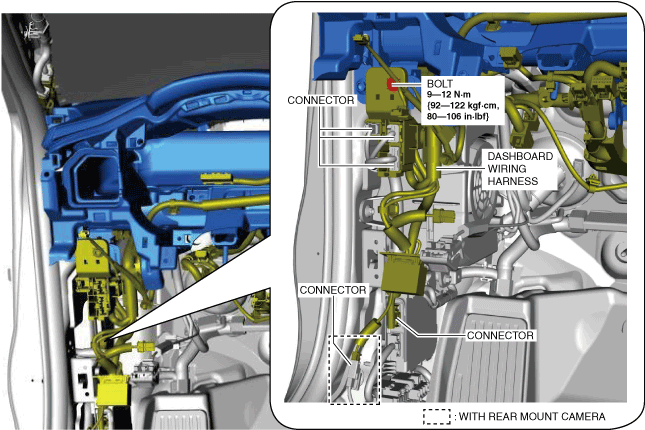

19. Install the bolt.

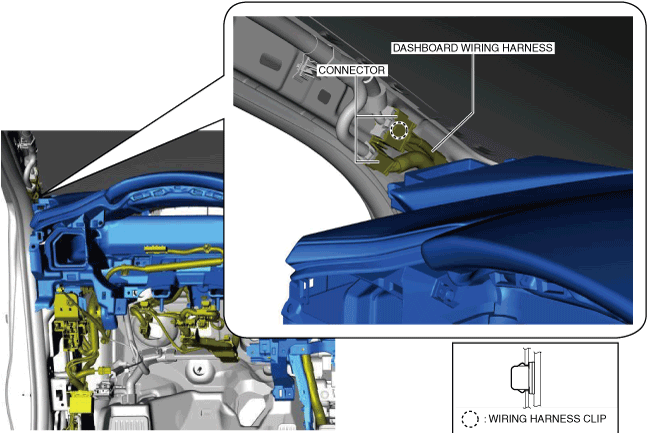

20. Connect the connectors and install wiring harness clip.
ac30zw00000326
21. Connect the connectors.
ac30zw00004173

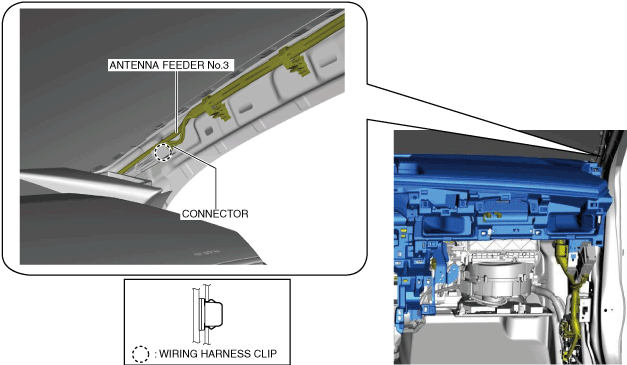

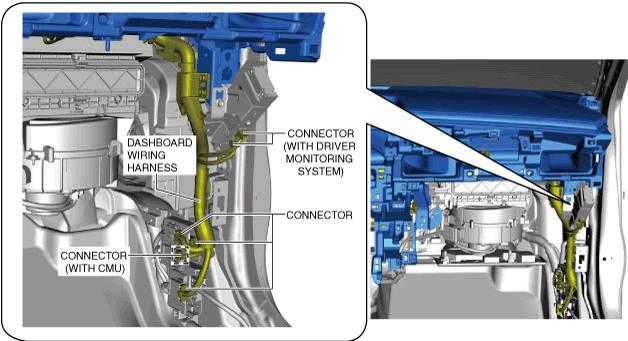

22. Connect the connector and install wiring harness clip. (with antenna feeder No.3)
ac30zw00004055

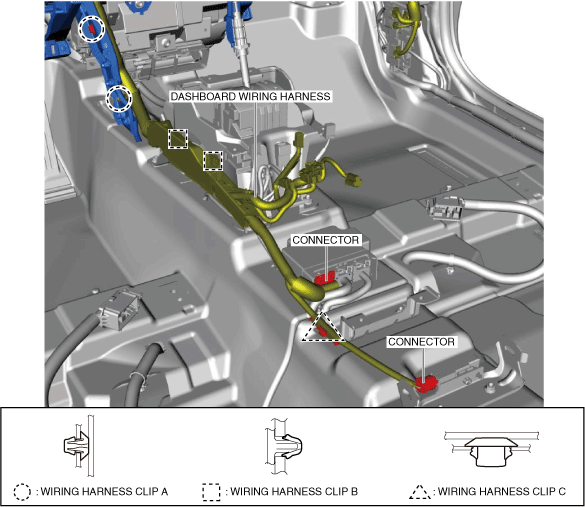

23. Connect the connector and install wiring harness clips A, B and C.
